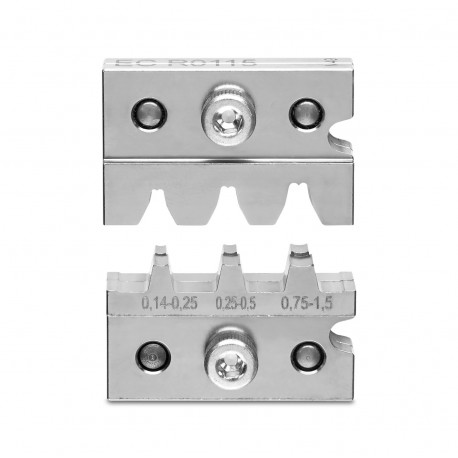

PHOENIX CONTACT CF 500/DIE SC 1,5 CF 500/DIE SC 1,5 1212241 PHOENIX CONTACT Replacement die View larger
Images are for illustrative purposes only. Please refer to data sheet for details

CF 500/DIE SC 1,5 1212241 PHOENIX CONTACT Replacement die

CF 500/DIE SC 1,5

1212241

PHOENIX CONTACT

1 Pcs.

Replacement die Matrix for CF 500 automatic crimper, for flat plug and flat connector females (C-SCF... and C-SCM...) 0,1 ... 1.5 mm² Die for CF 500 automatic crimping device, for slip-on sleeves and spade connectors (C-SCF... and C-SCM...) 0.1 mm2 ... 1.5 mm2

Tools > Stripping and crimping machine
TOOL fox

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Product properties
Product typeDie
CompressionB crimp
Data management status
Article revision00
Min. cross section0.14 mm²
Max. cross section1.5 mm²
Connection data
Conductor connection
Cross section range, metric0.1 mm² ... 1.5 mm²
Material specifications
Colorsilver-colored
MaterialSteel
Cable/line
External cable diameter0.5 mm ... 1.5 mm

ETIM for 1212241 Cable cutting and crimping tools (EC002778)
Feature Name Feature Value
Adjustable conductor cross section (EF008548) 0.14 mm²
Function (EF000030) Other
Strip length (EF006824) 7 mm
