View larger
Images are for illustrative purposes only. Please refer to data sheet for details

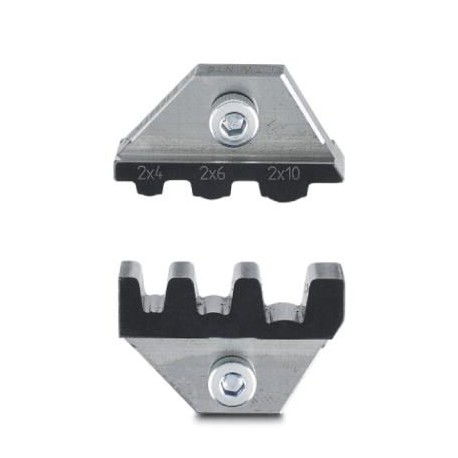

CF 500/DIE AI-TWIN 10 1212262 PHOENIX CONTACT Replacement die
CF 500/DIE AI-TWIN 10
1212262
PHOENIX CONTACT
1 Pcs.
Replacement die
Matrix for CF 500 automatic crimper, for TWIN dropouts (AI-TWIN...) 2 x 4, 2 x 6 and 2 x 10 mm²
Tools > Stripping and crimping machine
TOOL fox
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1212262 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 511 (C-3-2017) |
| GTIN | 4046356449861 |
| Weight per Piece (excluding packing) | 68.400 g |
| Custom tariff number | 84799070 |
| Country of origin | DE (Germany) |
General
| Compression | WM crimp |
|---|---|
| Max. cross section | 4 mm² |
| 6 mm² | |
| 10 mm² | |
| Min. cross section | 4 mm² |
| Max. cross section | 10 mm² |
Classifications
eCl@ss 10.0.117139201eCl@ss 4.021043074eCl@ss 4.121043074eCl@ss 5.021043290eCl@ss 5.121059000eCl@ss 6.021049000eCl@ss 7.021049090eCl@ss 8.021049090eCl@ss 9.017139201
| Feature Name | Feature Value |
|---|---|
| Adjustable conductor cross section (EF008548) | 4 mm² |
| Function (EF000030) | Other |
| Strip length (EF006824) | 12 mm |
