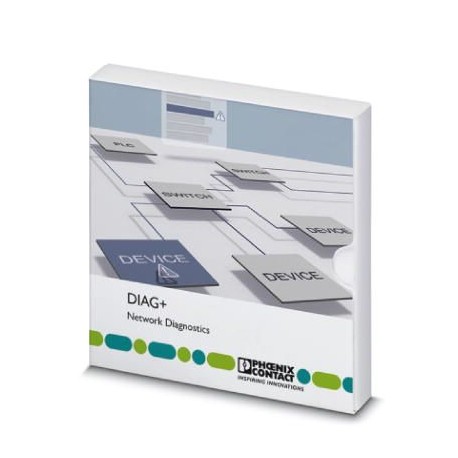

DIAG+ 2730307 PHOENIX CONTACT Software
DIAG+
2730307
PHOENIX CONTACT
1 Pcs.
Software
Diag+, diagnostic software for INTERBUS and PROFINET networks, other areas of application include commissioning and maintenance.
Automation > Programming- and engineering software
Automation Software (AS)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 2730307 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 65 (C-6-2017) |
| GTIN | 4017918606756 |
| Weight per Piece (excluding packing) | 81.000 g |
| Custom tariff number | 85234910 |
| Country of origin | DE (Germany) |
License information
| Intended use for the software | Configuration |
|---|---|
| Diagnostics | |
| Data acquisition | |
| Communication | |
| Startup | |
| Servicing | |
| DIN EN 61131-3 compliant | |
| Security |
Functions
| Basic functions | Reading in the installed bus structure |
|---|---|
| Detecting/representing error states (plain text from knowledge database) | |
| Diagnostics of INTERBUS FO paths (transmission quality) | |
| Reading out the Controller Diagnose Archive | |
| Numerous other diagnostic functions | |
| Supported controllers | INTERBUS generation 4 controller boards, PROFINET controller (Phoenix Contact only) |
| Number of I/O nodes | not relevant |
| Configuration | INTERBUS, PROFINET |
| Diagnostics | INTERBUS, PROFINET |
Hardware requirements
| Hard disk | min. 2 GByte |
|---|---|
| RAM | min. 2 GByte |
| CPU | min. 2 GHz, x86 architecture |
| Interfaces | Serial interface, Ethernet, PCI |
| Optical drive | DVD-ROM |
| Monitor resolution | SXGA (1280 x 1024) |
| Operating equipment | Keyboard, mouse |
Software requirements
| Operating system | Windows®7 Professional SP1 (32-Bit/64-Bit) |
|---|---|
| Windows®7 Ultimate SP1 (32-Bit/64-Bit) | |
| Windows®8.1 Professional (32-Bit/64-Bit) | |
| Windows®8.1 Enterprise (32-Bit/64-Bit) | |
| Windows®10 (32-bit/64-bit), as of Build 1511 | |
| Languages supported | German, English, French, Italian, Spanish, Chinese |
| Supported browsers | Internet Explorer Version 8 or later |
Classifications
eCl@ss 4.027250270eCl@ss 4.127250270eCl@ss 5.027242501eCl@ss 5.127242500eCl@ss 6.027242500eCl@ss 7.027242501eCl@ss 8.027242501eCl@ss 9.027242501
| Feature Name | Feature Value |
|---|---|
| With editor for programming language IL (Instruction List) (EF003035) | No |
| With editor for programming language LD (Ladder Diagram) (EF003036) | No |
| With editor for programming language FBD (Function Block Diagram) (EF003037) | No |
| With editor for programming language ST (structured text) (EF003038) | No |
| With editor for programming language SFC (Sequential Function Chart) (EF003039) | No |
| With editor for programming language Flowchart (EF006647) | No |
| With editor for manufacturer specific programming language (EF003040) | No |
| Integrated diagnosis function (EF003063) | Yes |
| Integrated configuration function (EF003064) | No |
| Integrated evaluation function (EF003065) | Yes |
| Integrated application configuration function (EF003066) | No |
| Integrated data detection function (EF003067) | Yes |
| Integrated communication function (EF003068) | Yes |
| Technology function integrated (EF003069) | No |
| Put into operation function integrated (EF003070) | Yes |
| Simulation function integrated (EF003072) | No |
| Integrated motion function (EF003073) | No |
| Integrated analysis function (EF003074) | No |
| Integrated position function (EF003075) | No |
| Maintenance function integrated (EF003328) | Yes |
| Suitable for safety functions (EF001597) | Yes |
