View larger
Images are for illustrative purposes only. Please refer to data sheet for details

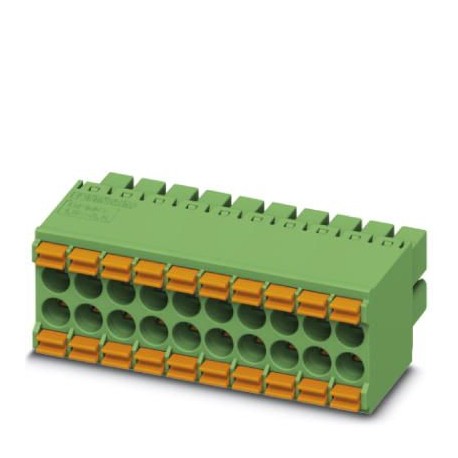

DFMC 1,5/ 4-ST-3,5 BDWH:V+D1- 1712239 PHOENIX CONTACT Printed-circuit board connector
DFMC 1,5/ 4-ST-3,5 BDWH:V+D1-
1712239
PHOENIX CONTACT
50 Pcs.
Printed-circuit board connector
Connector for printed circuit board, nominal section: 1.5 mm², color: green, nominal current: 8 A, dimensioning voltage (III/2): 160 V, contact surface: Tin, contact type: Female connection, Number of potentials: 8, Number of rows: 2, Number of poles per row: 4, number of connections: 8, family of articles: DFMC 1.5/.. -ST, pitch: 3.5 mm, connection type: Push-in spring connection, driver/printed circuit board connection direction: 0 °, Stecksystem: MINI COMBICON - DFMC 1.5, Lock: without, packaging type: boxed packed, AP = anti-rotation pin, increased hole in position 1 (1.85 mm)
Cables > Cable connector
PCB Connectors (PCC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General
| Range of articles | DFMC 1,5/..-ST |
|---|---|
| Number of positions | 4 |
| Connection method | Push-in spring connection |
| Insulating material group | I |
| Rated voltage (III/2) | 160 V |
| Nominal current IN | 8 A |
| Nominal cross section | 1.5 mm² |
| Flammability rating according to UL 94 | V0 |
Specifications for ferrules
| Recommended crimping pliers | 1212034 CRIMPFOX 6 |
|---|---|
| Ferrules without insulating collar, according to DIN 46228‑1 | Cross section: 0.25 mm²; Length: 5 mm ... 7 mm |
| Cross section: 0.34 mm²; Length: 7 mm | |
| Cross section: 0.5 mm²; Length: 8 mm ... 10 mm | |
| Cross section: 0.75 mm²; Length: 8 mm ... 10 mm | |
| Cross section: 1 mm²; Length: 8 mm ... 10 mm | |
| Cross section: 1.5 mm²; Length: 10 mm |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
