View larger
Images are for illustrative purposes only. Please refer to data sheet for details

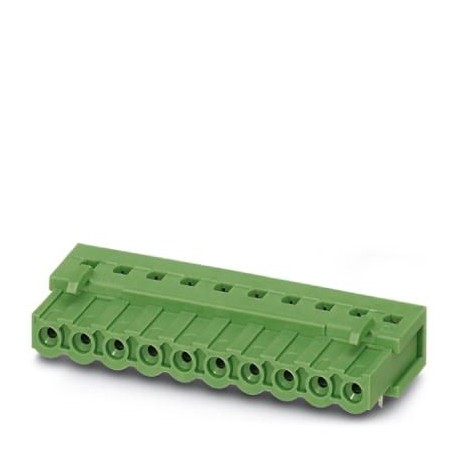

IC 2,5/ 7-G-5,08 PA(1357) 1746851 PHOENIX CONTACT Printed-circuit board connector
IC 2,5/ 7-G-5,08 PA(1357)
1746851
PHOENIX CONTACT
1000 Pcs.
Printed-circuit board connector
Printed circuit board base housing, nominal section: 2.5 mm², color: green, nominal current: 12 A, dimensioning voltage (III/2): 320 V, contact surface: Tin, contact type: Female connection, Number of potentials: 7, Number of rows: 1, Number of poles per row: 7, number of connections: 7, family of articles: IC 2.5/.. -G, pitch: 5.08 mm, mounting: Wave welding, pin arrangement: Linear double pin arrangement, pin length [P]: 3.5 mm, Stecksystem: CLASSIC COMBICON, Locking: without, packaging type: boxed
Connectors > Printed circuit board connector
PCB Connectors (PCC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1746851 |
|---|---|
| Packing unit | 50 pc |
| Minimum order quantity | 50 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4046356292870 |
| Weight per Piece (excluding packing) | 3.790 g |
| Custom tariff number | 85366930 |
| Country of origin | DE (Germany) |
Dimensions
| Length [ l ] | 18.9 mm |
|---|---|
| Width | 37.56 mm |
| Pitch | 5.08 mm |
| Dimension a | 30.48 mm |
| Width [ w ] | 37.56 mm |
| Height [ h ] | 13.7 mm |
| Height | 10.2 mm |
| Length of the solder pin | 3.5 mm |
| Pin dimensions | 0.48 x 1.14 mm |
| Length | 18.9 mm |
General
| Range of articles | IC 2,5/..-G |
|---|---|
| Rated voltage (III/3) | 320 V |
| Connection in acc. with standard | EN-VDE |
| Nominal current IN | 12 A |
| Color | green |
| Number of positions | 7 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
