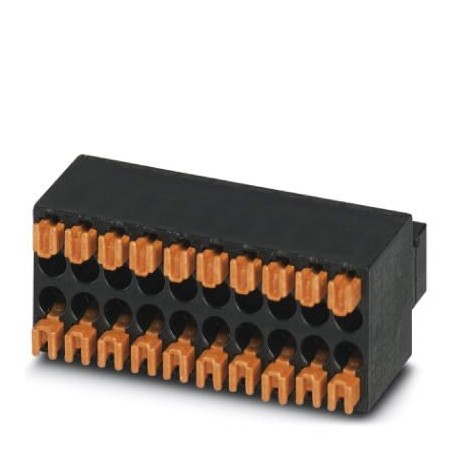

PHOENIX CONTACT DFMC 0,5/ 2-ST-2,54 DFMC 0,5/ 2-ST-2,54 1844578 PHOENIX CONTACT Printed-circuit board connector View larger
Images are for illustrative purposes only. Please refer to data sheet for details

DFMC 0,5/ 2-ST-2,54 1844578 PHOENIX CONTACT Printed-circuit board connector

DFMC 0,5/ 2-ST-2,54

1844578

PHOENIX CONTACT

100 Pcs.

Printed-circuit board connector Connector for printed circuit board, nominal section: 0.5 mm², color: black, nominal current: 6 A, nominal voltage (III/2): 160 V, contact surface: Gold, contact type: Female, number of potentials: 4, number of rows: 2, number of poles: 2, number of connections: 4, article family: DFMC 0.5/.. -ST, pitch: 2.54 mm, connection type: Push-in spring connection, conductor/printed circuit board connection direction: 0°, plug-in system: COMBICON DFMC 0.5, lock: without, fixing type: without, packaging type: boxed

Cables > Cable connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1844578
Packing unit100 pc
Minimum order quantity100 pc
GTIN4046356964241
Weight per Piece (excluding packing)1.060 g
Custom tariff number85366990
Country of originDE (Germany)

Item properties

Brief article descriptionPCB connector
Plug-in systemMICRO COMBICON - DFMC 0,5
Type of contactFemale connector
Range of articlesDFMC 0,5/..-ST
Pitch2.54 mm
Number of positions2
Connection methodPush-in spring connection
Lockingwithout
Number of levels2

Electrical parameters

Rated current6 A
Rated insulation voltage (III/2)160 V
Rated surge voltage (III/2)2.5 kV

Connection capacity

Conductor cross section solid0.14 mm² ... 0.5 mm²
Conductor cross section flexible0.14 mm² ... 0.5 mm²
Conductor cross section AWG / kcmil26 ... 20
Conductor cross section flexible, with ferrule without plastic sleeve0.25 mm² ... 0.34 mm²
Conductor cross section, flexible, with ferrule, with plastic sleeve0.14 mm² ... 0.25 mm²
Stripping length7 mm

Material data - contact

NoteWEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201
Contact materialCu alloy
Surface characteristicsSelective coating
Metal surface terminal point (top layer)Tin (5 - 7 µm Sn)
Metal surface terminal point (middle layer)Nickel (1 - 3 µm Ni)
Metal surface contact area (top layer)Gold (0.25 Au)
Metal surface contact area (middle layer)Nickel (2 - 3 µm Ni)

Material data - housing

Insulating materialLCP
Insulating material groupIIIa
CTI according to IEC 60112175
Flammability rating according to UL 94V0

Material data – actuating element

Insulating materialLCP
CTI according to IEC 60112175
Flammability rating according to UL 94V0

Dimensions for the product

Length [ l ]15.85 mm
Width [ w ]5.58 mm
Height [ h ]10.5 mm
Pitch2.54 mm
Height (without solder pin)10.5 mm
Dimension a2.54 mm

Packaging information

Type of packagingpacked in cardboard
Pieces per package100
Denomination packing unitsPcs.

Ambient conditions

Ambient temperature (storage/transport)-40 °C ... 70 °C
Ambient temperature (assembly)-5 °C ... 100 °C
Ambient temperature (operation)-40 °C

Termination and connection method

Test – repeated connection and releaseIEC 60999-1:1999-11

Pull-out test

Conductor cross section / conductor type / tensile force0.14 mm² / solid / > 10 N
0.14 mm² / flexible / > 10 N
0.5 mm² / solid / > 20 N
0.5 mm² / flexible / > 20 N

Air clearances and creepage distances

Insulating material groupIIIa
Voltage32 V
Rated insulation voltage (III/3)32 V
Rated insulation voltage (III/2)160 V
Rated insulation voltage (II/2)160 V
Rated surge voltage (III/3)2.5 kV
Rated surge voltage (III/2)2.5 kV
Rated surge voltage (II/2)2.5 kV

Temperature cycles

SpecificationIEC 60999-1:1999-11
Test current (minimum cross section)4 A AC
Test current (maximum cross section)6 A AC
Temperature cycles192

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


ETIM for 1844578 Connectors (EC002638)
Feature Name Feature Value
Type of connection (EF000064) Other
Contact type (EF001587) Bus
Number of poles (EF001391) 4
Number of plug-in contact rows (EF006935) 2
Modular spacing contacts (EF007326) 2.54 mm
Modular spacing connections (EF006827) 2.54 mm
Angle contact/conductor connection (EF007546) Other
Rated current In (EF008250) 6 A
Rated voltage (EF000228) 160 V
Rated surge voltage (EF002993) 1.5 kV
Over voltage category (EF006785) III
Pollution degree (EF006786) 2
Connectable conductor cross section fine-strand without cable end sleeve (EF007341) 0.14 mm²
Connectable conductor cross section fine-strand with cable end sleeve (EF007339) 0.14 mm²
Connectable conductor cross section solid-core (EF007337) 0.14 mm²
Type of electric connection (EF003961) Spring clamp connection
Connectable cable type (EF006816) Tubular cable
Material of contact surface (EF004020) Gold
Material contact (EF007544) Copper
Material insulation body (EF007543) Other
Housing material (EF001596) Other
Housing colour (EF000136) Black
Inflammability class of insulation material according to UL94 (EF002521) V0
Operating temperature (EF002393) -40 °C

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
