View larger

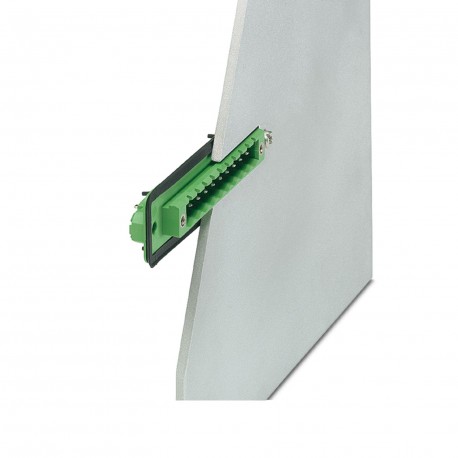

Images are for illustrative purposes only. Please refer to data sheet for details
DFK-MSTBA 2,5/ 8-GF-5,08 BK 1021710 PHOENIX CONTACT Feed-through header DFK-MSTBA 2,5/ 8-GF-5,08 BK 1021710
DFK-MSTBA 2,5/ 8-GF-5,08 BK
1021710
PHOENIX CONTACT
50 Pcs.
Feed-through header - DFK-MSTBA 2,5/ 8-GF-5,08 BK - 1021710
Through-wall housing, nominal section: 2.5 mm², color: graphite black, nominal current: 12 A, nominal voltage (III/2): 320 V, contact surface: Tin, contact type: Male, number of potentials: 8, number of rows: 1, number of poles: 8, number of connections: 8, family of articles: DFK-MSTBA 2.5/.. -GF, pitch: 5.08 mm, mounting: Wave soldering, pin arrangement: Linear pin arrangement, pin length [P]: 3.2 mm, number of solder pins per potential: 1, plug-in system: COMBICON MSTB 2.5, Plug-in face orientation: Standard, locking: Screw lock, fixing type: Air clamping (thread), packaging type: boxed
Connectors > Printed circuit board connector
PCB Connectors (PCC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Feed-through header, nominal current: 12 A, rated voltage (III/2): 320 V, number of positions: 8, pitch: 5.08 mm, color: graphite black, contact surface: Tin, mounting: Wave soldering
Key Commercial Data
| Orderkey | 1021710 |
|---|---|
| Packing unit | 1 |
| GTIN | 4055626513829 |
| Custom tariff number | 85366930 |
Dimensions
| Length [ l ] | 12 mm |
|---|---|
| Width | 70.4 mm |
| Pitch | 5.08 mm |
| Dimension a | 35.56 mm |
| Width [ w ] | 70.4 mm |
| Height [ h ] | 18.2 mm |
| Height | 18.2 mm |
| Length of the solder pin | 3.2 mm |
| Pin dimensions | 1 x 1 mm |
| Length | 12 mm |
General
| Range of articles | DFK-MSTBA 2,5/..-GF |
|---|---|
| Color | graphite black |
| Number of positions | 8 |
Classifications
eCl@ss
| eCl@ss 8.0 | 27440402 |
|---|---|
| eCl@ss 9.0 | 27440402 |
ETIM
| ETIM 5.0 | EC002637 |
|---|---|
| ETIM 6.0 | EC002637 |
