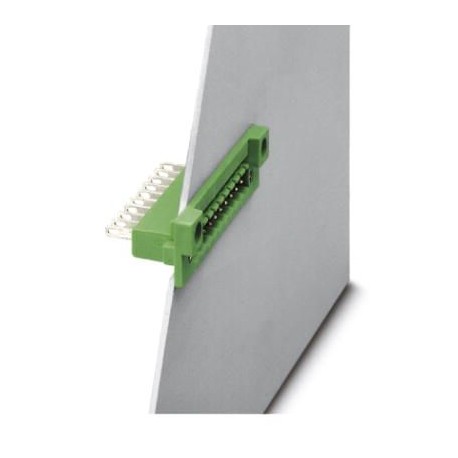

PHOENIX CONTACT DFK-MSTB 2,5/ 5-GF-5,08 BK DFK-MSTB 2,5/ 5-GF-5,08 BK 1785184 PHOENIX CONTACT Printed-circuit board connector View larger
Images are for illustrative purposes only. Please refer to data sheet for details

DFK-MSTB 2,5/ 5-GF-5,08 BK 1785184 PHOENIX CONTACT Printed-circuit board connector

DFK-MSTB 2,5/ 5-GF-5,08 BK

1785184

PHOENIX CONTACT

50 Pcs.

Printed-circuit board connector Cable pass housing, nominal section: 2.5 mm², color: black, nominal current: 12 A, nominal voltage (III/2): 320 V, contact surface: Tin, contact type: Male, number of potentials: 5, number of rows: 1, number of poles: 5, number of connections: 5, family of articles: DFK-MSTB 2.5/.. -GF, pitch: 5.08 mm, connection type: Solder/flat plug connection, mounting: Direct mounting, pin arrangement: Linear pin arrangement, pin length [P]: 9.3 mm, number of solder pins per potential: 1, plug-in system: COMBICON MSTB 2.5, Plug-in face orientation: Standard, lock: Screw lock, fixing type: Air clamping (thread), Packaging Type: Boxed Packaging

Connectors > Printed circuit board connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1785184
Packing unit1
GTIN4046356563680
Custom tariff number85366930

Dimensions

Length [ l ]17.5 mm
Width45.72 mm
Pitch5.08 mm
Dimension a20.32 mm
Width [ w ]45.72 mm
Height [ h ]29.3 mm
Height20.2 mm
Length of the solder pin9.3 mm
Pin dimensions0.8 x 2.8 mm
Length17.5 mm

General

Range of articlesDFK-MSTB 2,5/..-GF
Rated voltage (III/3)320 V
Connection in acc. with standardEN-VDE
Nominal current IN12 A
Colorblack
Number of positions5

Standards and Regulations

Connection in acc. with standardEN-VDE
CSA

Environmental Product Compliance

REACh SVHCLead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 1785184 Connectors (EC002637)
Feature Name Feature Value
Connector model (EF007495) Fixed connector
Contact type (EF001587) Pin
Number of poles (EF001391) 5
Number of plug-in contact rows (EF006935) 1
Modular spacing contacts (EF007326) 5.08 mm
Modular spacing connections (EF006827) 5.08 mm
Rated current In (EF008250) 12 A
Rated voltage (EF000228) 320 V
Rated surge voltage (EF002993) 4 kV
Over voltage category (EF006785) III
Pollution degree (EF006786) 2
Material of contact surface (EF004020) Tin
Type of electric connection (EF003961) Other
Diameter connection pin (EF006823) 3.2 mm
Length pin (EF006825) 9.3 mm
Material insulation body (EF007543) Other
Housing colour (EF000136) Black
Inflammability class of insulation material according to UL94 (EF002521) V0
Operating temperature (EF002393) -40 °C
Type of fastening (EF002442) Other
Type of banding (EF007011) Carton (for SMD)
