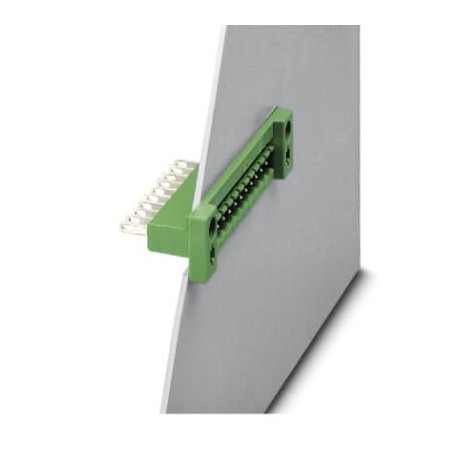

PHOENIX CONTACT DFK-MSTB 2,5/ 2-G A0 DFK-MSTB 2,5/ 2-G A0 1726428 PHOENIX CONTACT Printed-circuit board connector View larger
Images are for illustrative purposes only. Please refer to data sheet for details

DFK-MSTB 2,5/ 2-G A0 1726428 PHOENIX CONTACT Printed-circuit board connector

DFK-MSTB 2,5/ 2-G A0

1726428

PHOENIX CONTACT

500 Pcs.

Printed-circuit board connector Feed-through housing, nominal section: 2.5 mm², color: green, nominal current: 12 A, dimensioning voltage (III/2): 320 V, contact surface: Tin, contact type: Male, number of potentials: 2, number of rows: 1, number of poles: 2, number of connections: 2, family of articles: DFK-MSTB 2.5/.. -G, pitch: 5 mm, connection type: Solder/flat plug connection, mounting: Direct mounting, pin arrangement: Linear pin arrangement, pin length [P]: 9.3 mm, number of solder pins per potential: 1, plug-in system: CLASSIC COMBICON, Plug-in face orientation: Standard, Lock: without, fixing type: without, packaging type: boxed, the accessory with the code 5030172 is only usable in combination with MSTB 2.5/... ST and MSTBT 2.5/... ST.

Automation > Panel feed-through terminal block
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1726428
Packing unit50 pc
NoteMade to Order (non-returnable)
GTIN4046356132480
Weight per Piece (excluding packing)3.010 g
Custom tariff number85366990
Country of originDE (Germany)

Dimensions

Length [ l ]17.5 mm
Width30 mm
Pitch5 mm
Dimension a5 mm
Width [ w ]30 mm
Height [ h ]29.5 mm
Height20.2 mm
Length of the solder pin9.3 mm
Length17.5 mm

General

Range of articlesDFK-MSTB 2,5/..-G
Insulating material groupPA
Rated surge voltage (III/3)4 kV
Rated surge voltage (III/2)4 kV
Rated surge voltage (II/2)4 kV
Rated voltage (III/3)320 V
Rated voltage (III/2)320 V
Rated voltage (II/2)630 V
Connection in acc. with standardEN-VDE
Nominal current IN12 A
Insulating materialPA
Flammability rating according to UL 94V0
Colorgreen
Number of positions2

Standards and Regulations

Connection in acc. with standardEN-VDE
Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
