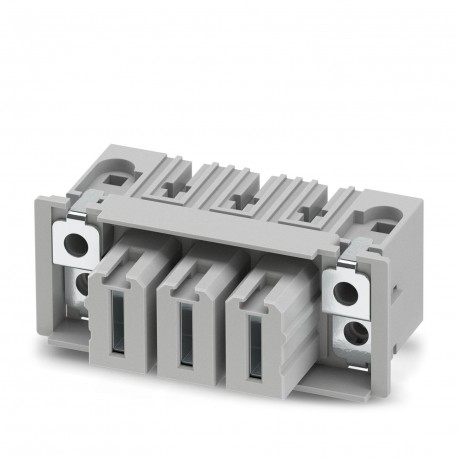

DFK-IPC 35 HC/ 3-GF-15,00 GY 1018944 PHOENIX CONTACT Housing, bulkhead DFK-IPC 35 HC/ 3-GF-15,00 GY 1018944
DFK-IPC 35 HC/ 3-GF-15,00 GY
1018944
PHOENIX CONTACT
1000 Pcs.
Housing, bulkhead - DFK-IPC 35 HC/ 3-GF-15,00 GY - 1018944
Feed-through header, nominal cross section: 35 mm2, color: gray, nominal current: 125 A, rated voltage (III/2): 1000 V, contact surface: Ag, contact connection type: Socket, number of potentials: 3, number of rows: 1, number of positions: 3, number of connections: 3, product range: DFK-IPC 35 HC/..-GF, pitch: 15 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 4.6 mm, number of solder pins per potential: 3, plug-in system: COMBICON PC 35, Pin connector pattern alignment: Standard, locking: Screw locking mechanism, mounting: Threaded flange, type of packaging: packed in cardboard
Connectors > Printed circuit board connector
PCB Connectors (PCC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Product type | Feed-through header |
| Product family | DFK-IPC 35 HC/..-GF |
| Product line | COMBICON Connectors XL |
| Number of positions | 3 |
| Pitch | 15 mm |
| Number of connections | 3 |
| Number of rows | 1 |
| Number of potentials | 3 |
| Pin layout | Linear pinning |
| Solder pins per potential | 3 |
| Data management status | |
| Article revision | 02 |
| Nominal current IN | 125 A |
| Nominal voltage UN | 1000 V |
| Rated voltage (III/3) | 1000 V |
| Rated surge voltage (III/3) | 8 kV |
| Rated voltage (III/2) | 1000 V |
| Rated surge voltage (III/2) | 8 kV |
| Rated voltage (II/2) | 1000 V |
| Rated surge voltage (II/2) | 6 kV |
| Mounting type | Wave soldering |
| Pin layout | Linear pinning |
| Flange | |
| Tightening torque | 0.8 Nm |
| Attachment to feed-through panel | |
| Tightening torque | 1 Nm |
| Screw | 1700368 DFK-PC 35 SS |
| Attachment on the PCB | |
| Tightening torque | 1 Nm |
| Screw | 1700368 DFK-PC 35 SS |
| Material data - contact | |
| Note | WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201 |
| Contact material | Cu alloy |
| Metal surface contact area (top layer) | Silver (4 - 8 µm Ag) |
| Material data - housing | |
| Color (Housing) | gray (7042) |
| Insulating material | PBT |
| Insulating material group | IIIa |
| CTI according to IEC 60112 | 225 |
| Flammability rating according to UL 94 | V0 |
| Notes on operation | In accordance with IEC 61984, COMBICON connectors have no switching power (COC). During designated use, they must not be plugged in or disconnected when carrying voltage or under load. |
| Dimensional drawing |  |
| Pitch | 15 mm |
| Width [w] | 77.4 mm |
| Height [h] | 36.3 mm |
| Length [l] | 44.9 mm |
| Installed height | 31.7 mm |
| Solder pin length [P] | 4.6 mm |
| Pin dimensions | 2.5 x 2.5 mm |
| PCB design | |
| Hole diameter | 3.6 mm |
| 5.4 mm | |
| Air clearances and creepage distances | |
| Specification | IEC 60664-1:2007-04 |
| Insulating material group | IIIa |
| Comparative tracking index (IEC 60112) | CTI 225 |
| Rated insulation voltage (III/3) | 1000 V |
| Rated surge voltage (III/3) | 8 kV |
| minimum clearance value - non-homogenous field (III/3) | 8 mm |
| minimum creepage distance (III/3) | 16 mm |
| Rated insulation voltage (III/2) | 1000 V |
| Rated surge voltage (III/2) | 8 kV |
| minimum clearance value - non-homogenous field (III/2) | 8 mm |
| minimum creepage distance (III/2) | 10 mm |
| Rated insulation voltage (II/2) | 1000 V |
| Rated surge voltage (II/2) | 6 kV |
| minimum clearance value - non-homogenous field (II/2) | 5.5 mm |
| minimum creepage distance (II/2) | 10 mm |
| Ambient conditions | |
| Ambient temperature (operation) | -40 °C ... 100 °C (dependent on the derating curve) |
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
| Relative humidity (storage/transport) | 30 % ... 70 % |
| Ambient temperature (assembly) | -5 °C ... 100 °C |
| Type of packaging | packed in cardboard |
| Type of packaging | packed in cardboard |
