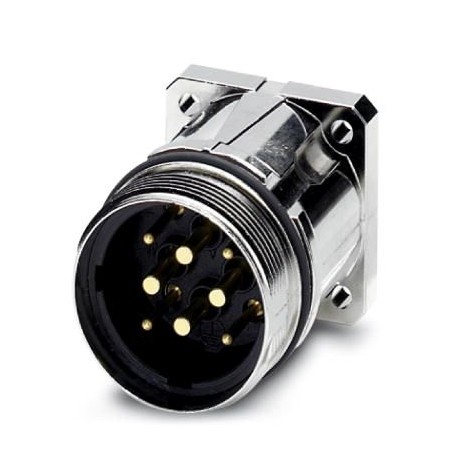

SM-7EPWN8AWT00 1613527 PHOENIX CONTACT Device connector, front mounting
SM-7EPWN8AWT00
1613527
PHOENIX CONTACT
1 Pcs.
Device connector, front mounting
Conect. plug. to be apar. front wall., straight, for standard and SPEEDCON locking, M40, number of poles: 4+3+PE, contact type: Male, Axial O-ring, 4x Ø4.2, shielded: yes, flange size: 40 mm x 40 mm, protection index: IP67, number of poles: 8, connection type: Crimped connection, series: SM, Alternative product according to RoHS II without exception 6c (Pb< 0.1%) item code: 1242766
Cables > Circular connector, mounting (without cable)
Field Device Connectors (FDC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1613527 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 165 (C-2-2017) |
| GTIN | 4046356400855 |
| Weight per Piece (excluding packing) | 184.100 g |
| Custom tariff number | 85366990 |
| Country of origin | DE (Germany) |
General
| Note | Order information: Order crimp contacts 4 x Ø 2 mm, 4 x Ø 3.6 mm separately |
|---|---|
| Type of locking | for standard and SPEEDCON interlock |
| Coding | N |
| Contact connection method | Crimp connection |
| Type of contacts | Pin |
| Number of positions | 8 |
| Contact diameter of power contacts | 3.6 mm |
| Nominal current per power contact at 25°C | 70 A |
| Contact diameter of signal contacts | 2 mm |
| Nominal current per signal contact at 25°C | 30 A |
| Pg housing screw connection | none |
| Mounting type | 4x Ø4,2 |
Material
| Housing material | Turned parts: copper zinc alloy (CuZn), die-cast parts: zinc (GD-Zn) |
|---|---|
| Insulator material | PA 6.6 |
| Gasket and O-ring material | FPM |
Specifications according to DIN EN 61984:2001
| Installation height max. | 3000 m |
|---|---|
| Nominal / operating voltage of power contacts | 630 V |
| Rated surge voltage of power contacts | 6 kV |
| Overvoltage category of power contacts | III |
| Degree of pollution of power contacts | 3 |
| Nominal / operating voltage of signal contacts | 250 V |
| Rated surge voltage of signal contacts | 4 kV |
| Overvoltage category of signal contacts | III |
| Degree of pollution of signal contacts | 3 |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 4.0272607xxeCl@ss 4.127260701eCl@ss 5.027143424eCl@ss 5.127143400eCl@ss 6.027279200eCl@ss 7.027440103eCl@ss 8.027440103eCl@ss 9.027440102
| Feature Name | Feature Value |
|---|---|
| Contact type (EF001587) | Other |
| Number of data contacts (EF012232) | 0 |
| Number of power contacts (EF012216) | 0 |
| Number of control contacts (EF012217) | 8 |
| Ambient temperature (EF002386) | -40 °C |
| Rated voltage (EF000228) | 630 V |
| Type of electric connection (EF003961) | Crimp connection |
| Type of locking (EF000208) | Other |
| With protective conductor (EF007468) | No |
| Screened (EF000881) | Yes |
| With status indication (EF001602) | No |
