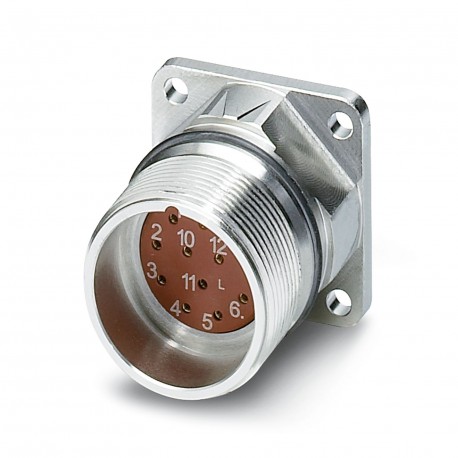

RF-17P1N8AWB00 1607863 PHOENIX CONTACT Device connector, front mounting
RF-17P1N8AWB00
1607863
PHOENIX CONTACT
1 Pcs.
Device connector, front mounting
Conect. plug. to be apar. front wall, straight, Screw lock, M23, number of poles: 17, contact type: Male, Axial O-ring, 4x Ø 3.2, shielded: yes, protection index: IP67, number of poles: 17, connection type: Crimped connection, series: RF
Device connector front mounting, straight, Screw locking mechanism, M23, number of positions: 17, contact connection type: Pin, Axial O-ring, 4x Ø 3.2, shielded: yes, number of positions: 17, connection method: Crimp connection, series: RF
Cables > Circular connector, mounting (without cable)
Field Device Connectors (FDC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Notes
| Order information: | Order crimp contacts Ø 1 mm separately |
Mounting
| Mounting type | Front mounting |
| Mounting | 4x Ø 3.2 |
Product properties
| Product type | Circular connectors (device side) |
| Series | RF |
| Application | Signal |
| Signal | |
| Number of positions | 17 |
| Connection profile | 17 |
| Shielded | yes |
| Coding | N |
| Thread type | M23 |
| Data management status | |
| Article revision | 03 |
Material specifications
| Seal material | FPM |
| Housing material | Turned parts: copper zinc alloy (CuZn), die-cast parts: zinc (GD-Zn) |
| Insulator material | PA 6.6 |
| Gasket and O-ring material | FPM |
Electrical properties
| Contact | |
| Contact diameter | 1 mm |
| Max. current | 8 A |
| Nominal voltage UN | 48 V AC 74 V DC |
| Overvoltage category | III |
| Degree of pollution | 3 |
| Rated surge voltage | 1.5 kV |
Connection data
| Conductor connection | |
| Connection method | Crimp connection |
| Contact connection type | Pin |
Connector
| Type | straight |
| Direction of rotation | Standard |
Environmental and real-life conditions
| Ambient conditions | |
| Degree of protection | IP67 |
| Ambient temperature (operation) | -40 °C ... 125 °C |
| Altitude | 2000 m |
| Feature Name | Feature Value |
|---|---|
| Contact type (EF001587) | Other |
| Number of data contacts (EF012232) | 0 |
| Number of power contacts (EF012216) | 0 |
| Number of control contacts (EF012217) | 17 |
| Ambient temperature (EF002386) | -40 °C |
| Rated voltage (EF000228) | 48 V |
| Type of electric connection (EF003961) | Crimp connection |
| Type of locking (EF000208) | Other |
| With protective conductor (EF007468) | No |
| Screened (EF000881) | Yes |
| With status indication (EF001602) | No |
