View larger
Images are for illustrative purposes only. Please refer to data sheet for details

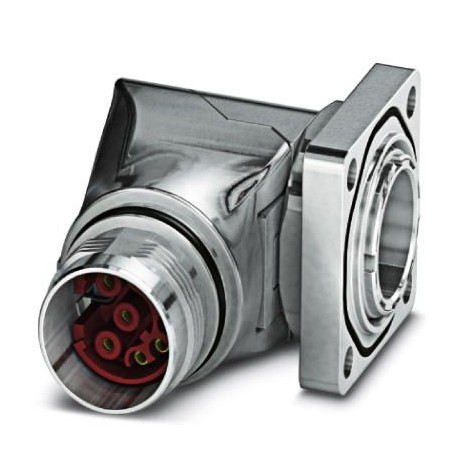

ST-08S1N8AA400S 1620440 PHOENIX CONTACT Device connector, front mounting
ST-08S1N8AA400S
1620440
PHOENIX CONTACT
1 Pcs.
Device connector, front mounting
Conect. plug. to be apar. front wall, Swivel angle, for standard and SPEEDCON lock, M17, number of poles: 8, contact type: Female, Axial O-ring, 4x Ø2.7, shielded: yes, flange size: 25.75 mm x 25.75 mm, protection index: IP67, number of poles: 8, connection type: Crimped connection, series: ST
Connectors > Sensor-actuator connector chassis
Field Device Connectors (FDC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1620440 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 68 (C-2-2017) |
| GTIN | 4046356828284 |
| Weight per Piece (excluding packing) | 44.440 g |
| Custom tariff number | 85366990 |
| Country of origin | DE (Germany) |
General
| Note | Order information: Order 8 x Ø 1 mm crimp contacts separately |
|---|---|
| Type of locking | for standard and SPEEDCON interlock |
| Direction of rotation of contact chamber numbering | Standard |
| Coding | N |
| Contact connection method | Crimp connection |
| Type of contacts | Socket |
| Number of positions | 8 |
| Contact diameter of power contacts | 1 mm |
| Nominal current per power contact at 25°C | 8 A |
| Pg housing screw connection | none |
| Mounting type | 4x Ø2,7 |
Specifications according to DIN EN 61984:2001
| Installation height max. | 3000 m |
|---|---|
| Nominal / operating voltage of power contacts | 60 V |
| Rated surge voltage of power contacts | 1.5 kV |
| Overvoltage category of power contacts | III |
| Degree of pollution of power contacts | 3 |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
