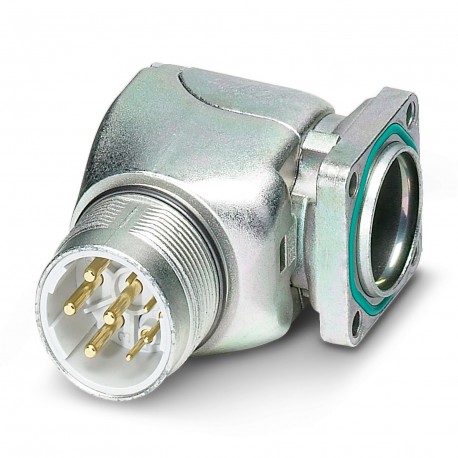

PHOENIX CONTACT SF-7EP1N8AA500 SF-7EP1N8AA500 1620660 PHOENIX CONTACT Device connector, front mounting View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SF-7EP1N8AA500 1620660 PHOENIX CONTACT Device connector, front mounting

SF-7EP1N8AA500

1620660

PHOENIX CONTACT

1 Pcs.

Device connector, front mounting Conect. plug. to be apar. front wall., Swivel elbow, for standard and SPEEDCON lock, M23, number of poles: 4+3+PE, contact type: Male, Axial O-ring, 4x Ø 3.2, shielded: yes, flange size: 26mm x 26mm, protection index: IP67, Compatible with SPEEDCON or M23 standard knurled nut counterconnectors, number of poles: 8, connection type: Crimped connection, Series: SF Device connector front mounting, angled rotatable, for standard and SPEEDCON interlock, M23, number of positions: 4+3+PE, contact connection type: Pin, Axial O-ring, 4x Ø 3.2, shielded: yes, flange dimensions: 26 mm x 26 mm, Compatible with mating connectors with SPEEDCON or M23 standard knurled nuts, number of positions: 8, connection method: Crimp connection, series: SF

Cables > Circular connector, mounting (without cable)
Field Device Connectors (FDC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Notes
Order information:Order crimp contacts 4 x Ø 1 mm, 4 x Ø 2 mm separately
Safety note
Safety noteWARNING: The connectors may not be plugged in or disconnected under load. Ignoring the warning or improper use may damage persons and/or property.
• WARNING: Commission properly functioning products only. The products must be regularly inspected for damage. Decommission defective products immediately. Replace damaged products. Repairs are not possible.
• WARNING: Only electrically qualified personnel may install and operate the product. They must observe the following safety notes. The qualified personnel must be familiar with the basics of electrical engineering. They must be able to recognize and prevent danger. The relevant symbol on the packaging indicates that only personnel familiar with electrical engineering are allowed to install and operate the product.
• The products are suitable for applications in plant, controller, and electrical device engineering.
• When operating the connectors in outdoor applications, they must be separately protected against environmental influences.
• Assembled products may not be manipulated or improperly opened.
• Only use mating connectors that are specified in the technical data of the standards listed (e.g. the ones listed in the product accessories online at phoenixcontact.com/products).
• When using the product in direct connection with third-party manufacturers, the user is responsible.
• For operating voltages > 50 V AC, conductive connector housings must be grounded
• Ensure that the protective or functional ground has been properly connected.
• VDE 0100/1.97 § 411.1.3.2 and DIN EN 60 204/11.98 § 14.1.3 are applicable when combining several circuits in a cable and/or connector
• Only use tools recommended by Phoenix Contact
• The installation notes/Design In documents online on the download page at phoenixcontact.com/products must be observed for this product.
• Operate the connector only when it is fully plugged in and interlocked.
• Ensure that when laying the cable, the tensile load on the connectors does not exceed the upper limit specified in the standards.
• Observe the minimum bending radius of the cable. Lay the cable without twisting it.
• The connector warms up in normal operation. Depending on the ambient conditions, the surface of the connector can continue to warm up. In this case, the user is responsible for posting warnings (e.g. DIN EN ISO 13732-1:2008-12).
Mounting
Mounting typeFront mounting
Mounting4x Ø 3.2
Product properties
Product typeCircular connectors (device side)
SeriesSF
ApplicationPower
Number of positions8
Connection profile4+3+PE
Shieldedyes
CodingN
Thread typeM23
Data management status
Article revision07
Dimensions
Housing
Flange dimensions26 mm x 26 mm
Material specifications
Flammability rating according to UL 94V0
Seal materialFPM
Housing materialMetal
Electrical properties
Contact
Contact diameter2 mm
Max. current30 A
Nominal voltage UN630 V
Overvoltage categoryIII
Degree of pollution3
Rated surge voltage6 kV
Contact
Contact diameter1 mm
Max. current9 A
Nominal voltage UN250 V
Overvoltage categoryIII
Degree of pollution3
Rated surge voltage4 kV
Connection data
Conductor connection
Connection methodCrimp connection
Contact connection typePin
Connector
Typeangled rotatable
Connection 1
Head designPin
Environmental and real-life conditions
Ambient conditions
Degree of protectionIP67
Ambient temperature (operation)-40 °C ... 125 °C
Altitude3000 m

ETIM for 1620660 Connectors (EC003569)
Feature Name Feature Value
With shield connection (EF002535) Yes
Number of poles (EF001391) 8
Number of control contacts (EF012217) 8
With PE-connection (EF005600) No
Housing material (EF001596) Other
Inflammability class of insulation material according to UL94 (EF002521) V0
Degree of protection (IP), mounted (EF007466) IP67
Ambient temperature (EF002386) 125 °C
Operating temperature (EF002393) -40 °C
With thread (EF003723) Yes
