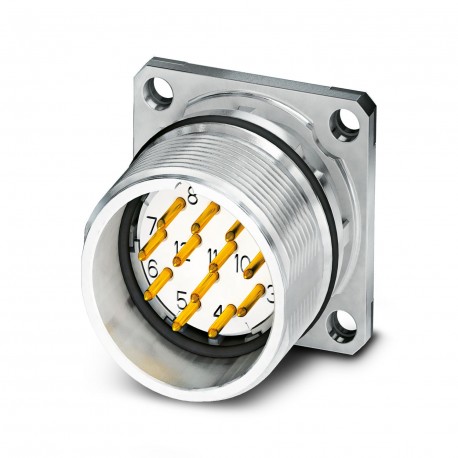

PHOENIX CONTACT CA-17P1N122S00 CA-17P1N122S00 1619960 PHOENIX CONTACT Device connector, front mounting View larger
Images are for illustrative purposes only. Please refer to data sheet for details

CA-17P1N122S00 1619960 PHOENIX CONTACT Device connector, front mounting

CA-17P1N122S00

1619960

PHOENIX CONTACT

1 Pcs.

Device connector, front mounting M23, Conect. plug. to be apar. front wall, AC, straight, shielded: yes, for standard and SPEEDCON locking, No. of poles: 17, Rotation direction: Standard, contact type: Male, Weld connection, Flat joint, 4x Ø 3.2, flange size: 25 mm x 25 mm, coding:N, Alternative product according to RoHS II without exception 6c (Pb< 0.1%) item code: 1243921 M23, Device connector front mounting, series: CA, straight, shielded: yes, for standard and SPEEDCON interlock, No. of pos.: 17, Direction of rotation: Standard, contact connection type: Pin, Solder connection, Flat gasket, 4x Ø 3.2, flange dimensions: 25 mm x 25 mm, coding: N, Alternative product in accordance with RoHS II without Exemption 6c (Pb < 0.1 %) item no.: 1243921

Cables > Circular connector, mounting (without cable)
Field Device Connectors (FDC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Product properties
Product typeCircular connectors (device side)
Data management status
Article revision09
Connector
Insulating body
CodingN
Insulation body materialPBT
Contact materialCuZn
Contact surface materialNi/Au
Insertion/withdrawal cycles100
Connection methodSolder connection
Contact switching typePin
ApplicationSignal
Number of positions17
Direction of rotationStandard
Connection profile17
Rated voltage48 V AC
74 V DC
Rated surge voltage1.5 kV
Overvoltage categoryIII
Degree of pollution3
Contact diameterSignal contacts1 mm
Litz wire cross-sectionSignal contactsmax.1 mm²
Nominal current per signal contact8 A
Housing
Housing materialGD-Zn
Flange dimensions25 mm x 25 mm
Type of lockingfor standard and SPEEDCON interlock
Pg screw connectionnone
Degree of protection (plugged in)IP67
Thread typeM23
Environmental and real-life conditions
Ambient conditions
Ambient temperature (operation)-40 °C ... 125 °C

ETIM for 1619960 Connectors (EC002635)
Feature Name Feature Value
Number of data contacts (EF012232) 0
Number of power contacts (EF012216) 0
Ambient temperature (EF002386) -40 °C
Type of locking (EF000208) Other
With protective conductor (EF007468) No
Screened (EF000881) No
With status indication (EF001602) No
