View larger
Images are for illustrative purposes only. Please refer to data sheet for details

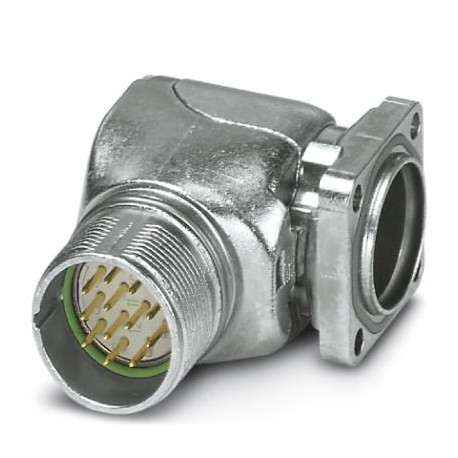

CA-12P2S8AAD00 1621740 PHOENIX CONTACT Device connector, front mounting
CA-12P2S8AAD00
1621740
PHOENIX CONTACT
1 Pcs.
Device connector, front mounting
Automation > Accessories/spare parts for low-voltage switch technology
Field Device Connectors (FDC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1621740 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4055626000565 |
| Weight per Piece (excluding packing) | 121.300 g |
| Custom tariff number | 85366990 |
| Country of origin | DE (Germany) |
Data of the insulating body
| Note | Order information: Order crimp contacts Ø 1 mm separately |
|---|---|
| Coding | S |
| Contact connection method | Crimp connection |
| Type of contacts | Pin |
| Application | Signal |
| Number of positions | 12 |
| Contact diameter of power contacts | 1 mm |
| Nominal current per power contact at 25°C | 8 A |
| Nominal voltage, power contact | 150 V |
| Rated surge voltage | 1.5 kV |
| Overvoltage category | II |
| Degree of pollution | 3 |
| Overvoltage category | II |
| Degree of pollution | 3 |
Housing data
| Housing material | Turned parts: copper zinc alloy (CuZn), die-cast parts: zinc (GD-Zn) |
|---|---|
| Type of locking | for standard and SPEEDCON interlock |
| Degree of protection (when plugged in) | IP67 |
| Thread type | M23 |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
