View larger
Images are for illustrative purposes only. Please refer to data sheet for details

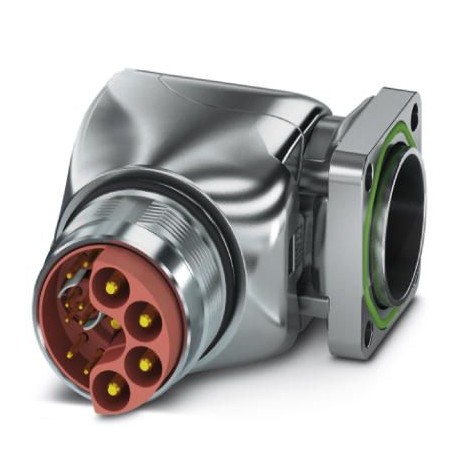

SH-8EPS48AAD00S 1621566 PHOENIX CONTACT Device connector, front mounting
SH-8EPS48AAD00S
1621566
PHOENIX CONTACT
1 Pcs.
Device connector, front mounting
M23, Conect. plug. to be apar. front wall, SH, Swivel elbow, shielded: yes, for standard lock and SPEEDCON, No. of poles: 8+4+PE, contact type: Male, Crimped connection, Axial O-ring, 4x Ø 3.2, flange size: 26mm x 26mm, coding:N
Cables > Circular connector, mounting (without cable)
Field Device Connectors (FDC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1621566 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 119 (C-2-2017) |
| GTIN | 4046356937146 |
| Weight per Piece (excluding packing) | 126.800 g |
| Custom tariff number | 85366990 |
| Country of origin | DE (Germany) |
Data of the insulating body
| Note | Order information: Crimp contacts, 8 x Ø 1 mm, 5 x Ø 2 mm, order separately |
|---|---|
| Coding | N |
| Insulator material | PA 6.6 |
| Insertion/withdrawal cycles mechanical | 100 |
| Contact connection method | Crimp connection |
| Type of contacts | Pin |
| Application | Hybrid |
| Number of positions | 13 |
| Contact diameter of power contacts | 2 mm |
| Litz wire cross section of power contacts min. | 0.25 mm² |
| Litz wire cross section of power contacts max. | 4 mm² |
| Nominal current per power contact at 25°C | 30 A |
| Rated surge voltage | 6 kV |
| Rated voltage (II/3) power contact | 850 V DC |
| Rated voltage (III/3) power contact | 630 VòAC |
| Contact diameter of signal contacts | 1 mm |
| Litz wire cross section of signal contacts min. | 0.06 mm² |
| Litz wire cross section of signal contacts max. | 1 mm² |
| Nominal current per signal contact at 25°C | 8 A |
| Rated surge voltage | 1.5 kV |
| Rated voltage (III/3) signal contact | 50 V |
Housing data
| Note | The suitability for assembly must be checked when fully assigned with maximum wire cross sections. |
|---|---|
| Housing material | Turned parts: copper zinc alloy (CuZn), die-cast parts: zinc (GD-Zn) |
| Flange dimensions | 26 mm x 26 mm |
| Type of locking | for standard and SPEEDCON interlock |
| Degree of protection (when plugged in) | IP67 |
| IP68 | |
| Thread type | M23 |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 4.0272607xxeCl@ss 4.127260701eCl@ss 5.027143424eCl@ss 5.127260700eCl@ss 6.027260700eCl@ss 7.027440102eCl@ss 8.027440102eCl@ss 9.027440103
| Feature Name | Feature Value |
|---|---|
| With shield connection (EF002535) | No |
| With PE-connection (EF005600) | No |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| Ambient temperature (EF002386) | 115 °C |
| Operating temperature (EF002393) | -40 °C |
| With thread (EF003723) | Yes |
