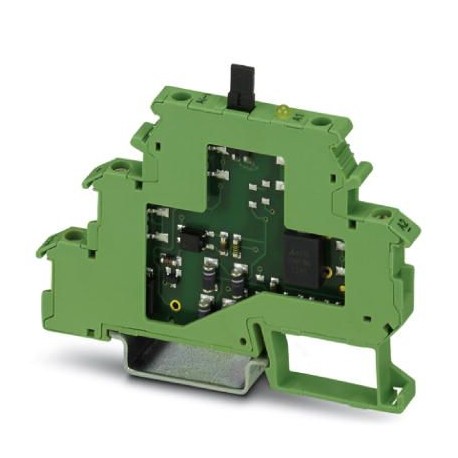

PHOENIX CONTACT DEK-OE-24DC/ 48DC/100/T DEK-OE- 24DC/ 48DC/100/T 2964254 PHOENIX CONTACT Solid-state relay terminal block View larger
Images are for illustrative purposes only. Please refer to data sheet for details

DEK-OE- 24DC/ 48DC/100/T 2964254 PHOENIX CONTACT Solid-state relay terminal block

DEK-OE-24DC/ 48DC/100/T

2964254

PHOENIX CONTACT

1 Pcs.

Solid-state relay terminal block Input solid-state relay terminal, input: 24 V DC, output: 3 - 48 V DC/100 mA, with interrupt plug on output, terminal width 6.2 mm

Automation > Optocoupler
Industrial Relays

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2964254
Packing unit10 pc
Catalog pagePage 71 (IF-2002)
GTIN4017918100803
Weight per Piece (excluding packing)21.060 g
Custom tariff number85364190
Country of originCN (China)

Note

Utilization restrictionEMC: class A product, see manufacturer's declaration in the download area

Dimensions

Width6.2 mm
Height80 mm
Depth56 mm

Ambient conditions

Ambient temperature (operation)-20 °C ... 60 °C
Ambient temperature (storage/transport)-20 °C ... 70 °C

Input data

Nominal input voltage UN24 V DC
Input voltage range in reference to UN0.9 ... 1.1
Input voltage range21.6 V DC ... 26.4 V DC
Switching threshold "0" signal in reference to UN≤ 0.4
Switching threshold "1" signal in reference to UN≥ 0.8
Typical input current at UN6.5 mA
Typical response time40 µs (delay)
Typical turn-off time40 µs (delay)
Status displayYellow LED
Type of protectionReverse polarity protection
Protective circuit/componentBridge rectifier
Transmission frequency30 Hz

Output data

Output voltage range3 V DC ... 48 V DC
Limiting continuous current100 mA
Voltage drop at max. limiting continuous current≤ 0.9 V
Output circuit2-wire, floating
Type of protectionReverse polarity protection
Surge protection
Protective circuit/componentPolarity protection diode

Connection data, input side

Connection nameInput side
Connection methodScrew connection
Stripping length8 mm
Screw threadM3
Conductor cross section solid0.2 mm² ... 2.5 mm²
Conductor cross section flexible0.2 mm² ... 2.5 mm²
Conductor cross section AWG24 ... 14
Torque0.5 Nm

Connection data, output side

Connection nameOutput side
Connection methodScrew connection
Stripping length8 mm
Screw threadM3
Conductor cross section solid0.2 mm² ... 2.5 mm²
Conductor cross section flexible0.2 mm² ... 2.5 mm²
Conductor cross section AWG24 ... 14
Torque0.5 Nm

General

NoteThe housing is open on one side. The appropriate cover is D-DEK 1,5 GN (2716949).
Type of noteNote on application
NoteUse of EB 80-DIK... bridges in the DEK terminal blocks: Absorption of humidity from the ambient air as well as an unfavorable tolerance between a larger number of DEK terminal blocks and the EB 80-DIK... bridge may cause (minor) expansion of the DEK housing. When the EB 80-DIK... bridges are used, therefore, it is recommended that these be disconnected after about 10 to 12 DEK terminal blocks and a wire bridge to the next DEK terminal block be inserted in their place.
Test voltage input/output2.5 kV AC
Mounting positionany
Assembly instructionsIn rows with zero spacing
Operating mode100% operating factor
Standards/regulationsIEC 60664
IEC 60664A
DIN VDE 0110
Degree of pollution2
Overvoltage categoryIII

Standards and Regulations

Standards/regulationsIEC 60664
IEC 60664A
DIN VDE 0110
Degree of pollution2
Overvoltage categoryIII

Environmental Product Compliance

REACh SVHCLead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 2964254 Relays (EC001504)
Feature Name Feature Value
Input voltage (EF003840) 21.6 V
Type of voltage (input voltage) (EF003033) DC
Output voltage (EF003933) 3 V
Type of output voltage (EF008222) DC
Rated operation current Ie (EF001443) 0.1 A
Type of digital output (EF003601) Electronic
With LED indication (EF005950) Yes
