View larger
Images are for illustrative purposes only. Please refer to data sheet for details

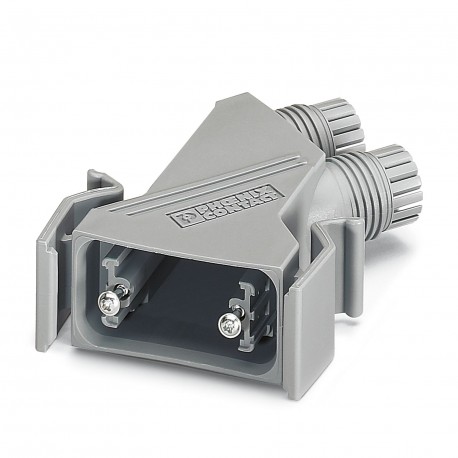

VS-15-T-2PG11 1688052 PHOENIX CONTACT D-SUB sleeve housings
VS-15-T-2PG11
1688052
PHOENIX CONTACT
5 Pcs.
D-SUB sleeve housings
D-SUB bobbin housing, wrap size 2, IP67 degree of protection
D-SUB mobile enclosure, tab size 2, IP67 degree of protection
Connectors > Accessories/spare parts for industrial connectors
Field Device Connectors (FDC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1688052 |
|---|---|
| Packing unit | 5 pc |
| Minimum order quantity | 5 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 219 (C-2-2013) |
| GTIN | 4017918179687 |
| Weight per Piece (excluding packing) | 38.290 g |
| Custom tariff number | 85472000 |
| Country of origin | DE (Germany) |
Mechanical characteristics
| Insertion/withdrawal cycles | ≥ 1000 |
|---|---|
| External cable diameter | 3 mm ... 10 mm |
| Cable outlet | Angled |
| Color | gray |
| Degree of protection | IP67 |
| Type | D-SUB 15 |
| Size of housing | 2 |
| No. of cable outlets | 2 |
| Type of the screw connection | Pg11 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.027140816eCl@ss 4.127260701eCl@ss 5.027260701eCl@ss 5.127261200eCl@ss 6.027261200eCl@ss 7.027440202eCl@ss 8.027440202eCl@ss 9.027440202
| Feature Name | Feature Value |
|---|---|
| Width (EF000008) | 68.4 mm |
| Height (EF000040) | 24 mm |
| Depth (EF000049) | 89 mm |
| Housing material (EF001596) | Plastic |
| Coating housing (EF001601) | Other |
| Housing colour (EF000136) | Grey |
| With cable screw gland (EF000735) | No |
| Mounting method of the cable gland (EF012210) | Other |
| With hinged lid (EF000117) | No |
| With distance piece (EF005072) | No |
| With sealing (EF005610) | No |
| Number of conduit inlets (EF000437) | 2 |
| Operating temperature (EF002393) | -40 °C |
| EMC-version (EF001062) | No |
