View larger
Images are for illustrative purposes only. Please refer to data sheet for details

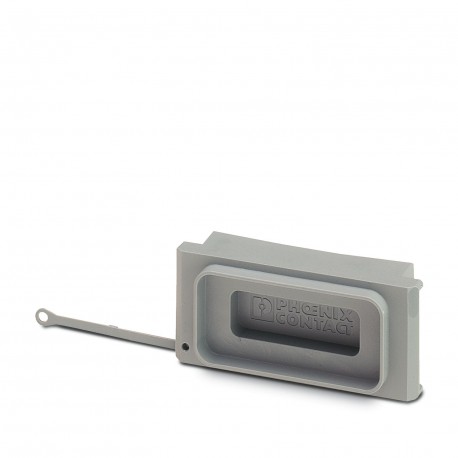

VS-09-SD 1887086 PHOENIX CONTACT D-SUB protective cover
VS-09-SD
1887086
PHOENIX CONTACT
5 Pcs.
D-SUB protective cover
D-SUB protective cap, material: PA, housing size: 1, color: gray
Connectors > Cap for industrial connectors
Field Device Connectors (FDC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1887086 |
|---|---|
| Packing unit | 5 pc |
| Minimum order quantity | 5 pc |
| Catalog page | Page 219 (C-2-2013) |
| GTIN | 4017918817480 |
| Weight per Piece (excluding packing) | 7.080 g |
| Custom tariff number | 85389099 |
| Country of origin | DE (Germany) |
Mechanical characteristics
| Locking type | without |
|---|---|
| Insertion/withdrawal cycles | ≥ 1000 |
| Color | gray |
| Type | D-SUB 9 |
| Size of housing | 1 |
Ambient conditions
| Ambient temperature (operation) | -40 °C ... 80 °C |
|---|---|
| Degree of protection | IP54 (in combination with the sleeve housing) |
| IP65 (in combination with the panel mounting frame) |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.027141210eCl@ss 4.127141210eCl@ss 5.027149110eCl@ss 5.127149100eCl@ss 6.027261200eCl@ss 7.027440208eCl@ss 8.027440208eCl@ss 9.027440208
| Feature Name | Feature Value |
|---|---|
| Type of locking (EF000208) | None |
| With sealing (EF005610) | No |
| With captivity element (EF012222) | No |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| Ambient temperature (EF002386) | 80 °C |
| Degree of protection (IP), mounted (EF007466) | IP54 |
