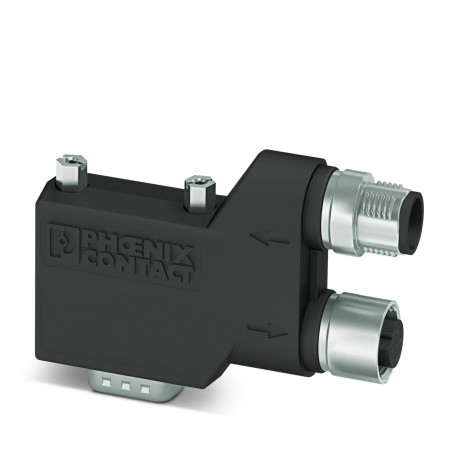

SUBCON-PLUS-CAN/90/M12 2902323 PHOENIX CONTACT D-SUB bus connector

SUBCON-PLUS-CAN/90/M12

2902323

PHOENIX CONTACT

1 Pcs.

D-SUB bus connector D-SUB connector, 9 poles, female connector, mapping: 2, 3, 5, 6, 7, 9; two M12 cable glands (A-coding) under 90°. Bus system: CAN, CANopen. Closing resistance by means of a separate M12 terminator. Long version; S7 compatible. D-SUB connector, 9-pos., socket, assignment: 2, 3, 5, 7, 9; two M12 cable entries (A-coded) under 90°. Bus system: CAN, CANopen®. Termination resistor via separate M12 terminator.

Connectors > D-Sub connector
Safety

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2902323
Packing unit1 pc
Catalog pagePage 373 (C-6-2017)
GTIN4046356655033
Weight per Piece (excluding packing)67.100 g
Custom tariff number85366990
Country of originCN (China)

Dimensions

Width16 mm
Height40 mm
Length71 mm

Ambient conditions

Ambient temperature (operation)-30 °C ... 80 °C
Ambient temperature (storage/transport)-40 °C ... 85 °C
Ambient temperature (assembly)-20 °C ... 80 °C
Permissible humidity (operation)10 % ... 75 % (At +25°C, non-condensing)
Altitude5000 m (For restrictions see manufacturer's declaration)
Degree of protectionIP40

General

Bus systemCAN, CANopen, SafetyBus-P
SignalCAN
CANopen®
SUBCON fixing screws4-40 UNC
Tightening torque0.4 Nm
Housing materialPolyamide
Pin assignment2, 3, 5, 7, 9
MTTF6706 Years (SN 29500 standard, temperature 25 °C, operating cycle 21 % (5 days a week, 8 hours a day))
1817 Years (SN 29500 standard, temperature 40 °C, operating cycle 34.25 % (5 days a week, 12 hours a day))
155 Years (SN 29500 standard, temperature 40 °C, operating cycle 100 % (7 days a week, 24 hours a day))

Connection data

ConnectionD-SUB connection
Number of positions9
Connection methodD-SUB socket
Termination resistorseparately via M12 termination resistor
ConnectionM12 plug
Number of positions5
Connection methodM12 connector, A-coded
Torque0.4 Nm
ConnectionM12 socket
Number of positions5
Connection methodM12 connector, A-coded
Torque0.4 Nm

Standards and Regulations

Noxious gas testISA-S71.04-1985 G3 Harsh Group A

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 2902323 Data networking products (EC001132)
Feature Name Feature Value
Number of poles (EF001391) 9

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
