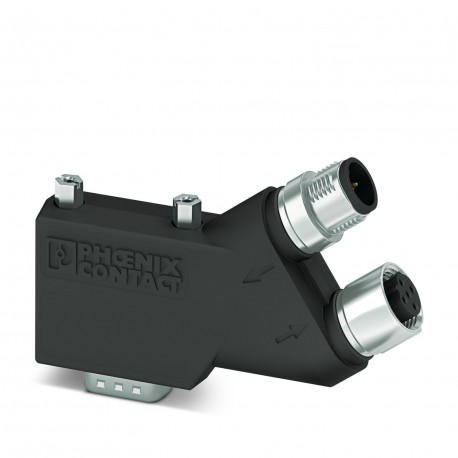

PHOENIX CONTACT SUBCON-PLUS-CAN/35/M12 SUBCON-PLUS-CAN/35/M12 2902325 PHOENIX CONTACT D-SUB bus connector View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SUBCON-PLUS-CAN/35/M12 2902325 PHOENIX CONTACT D-SUB bus connector

SUBCON-PLUS-CAN/35/M12

2902325

PHOENIX CONTACT

1 Pcs.

D-SUB bus connector D-SUB connector, 9 poles, female connector, mapping: 2, 3, 5, 6, 7, 9; two M12 cable glands (A-coding) under 35°. Bus system: CAN, CANopen. Closing resistance by means of a separate M12 terminator. D-SUB connector, 9-pos., socket, assignment: 2, 3, 5, 7, 9; two M12 cable entries (A-coded) under 35°. Bus system: CAN, CANopen®. Termination resistor via separate M12 terminator.

Connectors > D-Sub connector
Safety

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Notes
Note on application
Note on applicationOnly for industrial use
Product properties
Product typeData plug
MTTF6706 Years (SN 29500 standard, temperature 25°C, operating cycle 21%)
1817 Years (SN 29500 standard, temperature 40°C, operating cycle 34.25%)
155 Years (SN 29500 standard, temperature 40°C, operating cycle 100%)
Pin assignment2, 3, 5, 7, 9
Data management status
Article revision03
Electrical properties
Nominal voltage UN5 V
Nominal current IN100 mA
Connection data
Tightening torque... 0.4 Nm
D-SUB connection
Connection methodD-SUB socket
M12 connector
Connection methodM12 male, A-coded
M12 connector
Connection methodM12 female, A-coded
Interfaces
Bus systemCAN, CANopen, SafetyBus-P
SignalCAN
CANopen®
Dimensions
Dimensional drawingrmvobofpwa.jpg
Width16 mm
Height46 mm
Length79 mm
Material specifications
Material (Housing)Polyamide
Environmental and real-life conditions
Ambient conditions
Degree of protectionIP40
Ambient temperature (operation)-30 °C ... 80 °C
Ambient temperature (storage/transport)-40 °C ... 85 °C
Ambient temperature (assembly)-20 °C ... 80 °C
Altitude≤ 5000 m (For restrictions, see the manufacturer's declaration for altitude operation)
Permissible humidity (operation)10 % ... 95 % (non-condensing)
Permissible humidity (storage/transport)5 % ... 95 % (non-condensing)
Standards and regulations
Free from substances that could impair the application of coatingVDMA 24364:2018-05

ETIM for 2902325 Data networking products (EC001132)
Feature Name Feature Value
Number of poles (EF001391) 9
