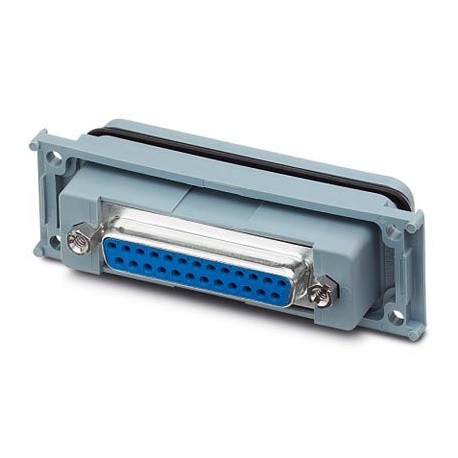

D-SUB panel mounting frames D-SUB Recessed Frame, Wrap Size 3, with 25 Signal Contacts, Female, Gender Changer, Shielded, IP67 Degree of Protection

Connectors > Fixing element for industrial connectors
Field Device Connectors (FDC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1689734
Packing unit5 pc
Minimum order quantity5 pc
NoteMade to Order (non-returnable)
Catalog pagePage 221 (C-2-2013)
GTIN4017918934118
Weight per Piece (excluding packing)29.240 g
Custom tariff number85366990
Country of originDE (Germany)

Mechanical characteristics

Number of positions25
Insertion/withdrawal cycles≥ 200
Colorgray
Degree of protectionIP67
TypeD-SUB 25
Size of housing3

Ambient conditions

Ambient temperature (operation)-40 °C ... 80 °C

Material data

Flammability rating according to UL 94V0
Housing materialPA
Contact carrier materialPolyester GF
Contact materialCopper alloy
Contact surface materialHard gold-plated over nickel
MaterialPlastic
Sealing materialFlat gasket: NBR; profile gasket: EPDM
Seal materialFlat gasket: NBR; profile gasket: EPDM
Height27.9 mm

Electrical characteristics

Number of positions25
Rated current5 A
Overvoltage categoryIII
Degree of pollution2
Rated voltage (III/3)125 V

Standards and Regulations

Flammability rating according to UL 94V0

Environmental Product Compliance

REACh SVHCLead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 1689734 Connectors (EC002310)
Feature Name Feature Value
Material assembly frame (EF007542) Plastic
With PE-connection (EF005600) No
Inflammability class of insulation material according to UL94 (EF002521) V0
Fixing direction (EF012208) Swivelling
Width (EF000008) 24 mm
Height (EF000040) 27.9 mm
Depth (EF000049) 76 mm

Product Datasheet
