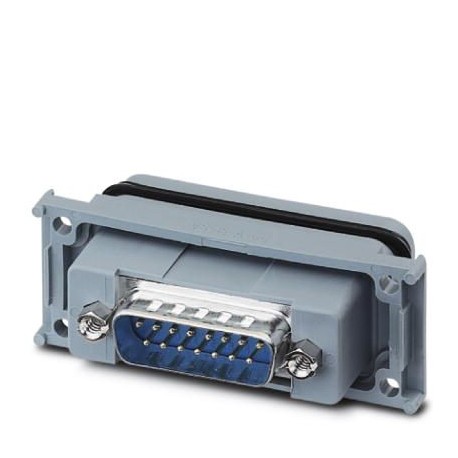

VS-15-A-GC-ST/ST 1689721 PHOENIX CONTACT D-SUB panel mounting frames
VS-15-A-GC-ST/ST
1689721
PHOENIX CONTACT
5 Pcs.
D-SUB panel mounting frames
D-SUB Recessed Frame, Wrap Size 2, with 15 Signal Contacts, Male, Gender Changer, Shielded, IP67 Degree of Protection
Automation > D-Sub coupler
Field Device Connectors (FDC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1689721 |
|---|---|
| Packing unit | 5 pc |
| Minimum order quantity | 5 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 221 (C-2-2013) |
| GTIN | 4017918934132 |
| Weight per Piece (excluding packing) | 21.160 g |
| Custom tariff number | 85366990 |
| Country of origin | DE (Germany) |
Mechanical characteristics
| Number of positions | 15 |
|---|---|
| Insertion/withdrawal cycles | ≥ 200 |
| Color | gray |
| Degree of protection | IP67 |
| Type | D-SUB 15 |
| Size of housing | 2 |
Material data
| Flammability rating according to UL 94 | V0 |
|---|---|
| Housing material | PA |
| Contact carrier material | Polyester GF |
| Contact material | Copper alloy |
| Contact surface material | Hard gold-plated over nickel |
| Material | Plastic |
| Sealing material | Flat gasket: NBR; profile gasket: EPDM |
| Seal material | Flat gasket: NBR; profile gasket: EPDM |
| Height | 27.9 mm |
Electrical characteristics
| Number of positions | 15 |
|---|---|
| Rated current | 5 A |
| Overvoltage category | III |
| Degree of pollution | 2 |
| Rated voltage (III/3) | 125 V |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 4.027140816eCl@ss 4.127260701eCl@ss 5.027260701eCl@ss 5.127261200eCl@ss 6.027261200eCl@ss 7.027440202eCl@ss 8.027440214eCl@ss 9.027440214
| Feature Name | Feature Value |
|---|---|
| Number of poles (EF001391) | 15 |
