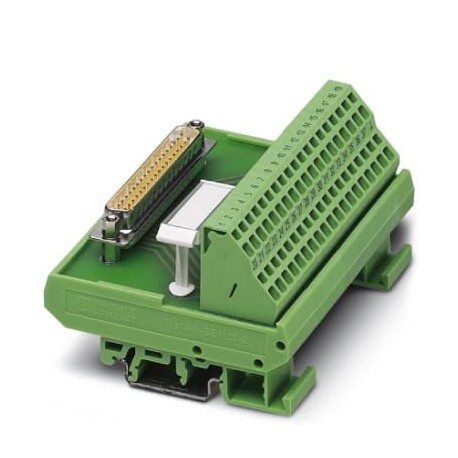

PHOENIX CONTACT FLKM-D37 SUB/S/ZFKDS FLKM-D37 SUB/S/ZFKDS 2304018 PHOENIX CONTACT Interface module View larger
Images are for illustrative purposes only. Please refer to data sheet for details

FLKM-D37 SUB/S/ZFKDS 2304018 PHOENIX CONTACT Interface module

FLKM-D37 SUB/S/ZFKDS

2304018

PHOENIX CONTACT

1 Pcs.

Interface module Standard 1:1 D-SUB module, spring-loaded with D-SUB plug, number of poles 37

Automation > Interface module
INTERFACE Components (IF)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2304018
Packing unit1 pc
Catalog pagePage 308 (IF-2011)
GTIN4017918943981
Weight per Piece (excluding packing)0.770 g
Custom tariff number85369010
Country of originDE (Germany)

Dimensions

Width101.3 mm
Height77 mm
Depth52 mm

Ambient conditions

Ambient temperature (operation)-20 °C ... 50 °C
Ambient temperature (storage/transport)-20 °C ... 70 °C

General

Max. perm. operating voltage25 V AC
60 V DC
Max. perm. current (per branch)2.5 A
1.5 A (with even load on all branches)
Number of positions37
Status displayNo
Mounting positionany
Assembly instructionsIn rows with zero spacing
Degree of protectionIP20

Connection data for connection 1

Connection nameField level
Connection methodSpring-cage connection
Stripping length7 mm
Conductor cross section solid0.2 mm² ... 4 mm²
Conductor cross section flexible0.2 mm² ... 2.5 mm²
Conductor cross section AWG24 ... 12
Number of positions38

Connection data for connection 2

Connection nameController level
Connection methodD-SUB pin strip
Number of positions37

Standards and Regulations

Connection in acc. with standardCUL
Standards/regulationsIEC 60664
DIN EN 50178
Rated insulation voltage125 V
Rated surge voltage1.2 kV
InsulationFunctional insulation
Degree of pollution2
Overvoltage categoryII

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 2304018 PLC's (EC002780)
Feature Name Feature Value
Type of electrical connection, field-sided (EF005525) Spring clamp connection
Type of electrical connection, control sided (EF008549) D-Sub
Number of poles (EF001391) 37
Rated voltage (EF000228) 30 V
Rated current (EF000227) 2.5 A
Depth (EF000049) 57.47 mm
Width (EF000008) 101.15 mm
Height (EF000040) 77 mm
Mounting method (EF000003) DIN rail (top hat rail) 35 mm
