View larger
Images are for illustrative purposes only. Please refer to data sheet for details

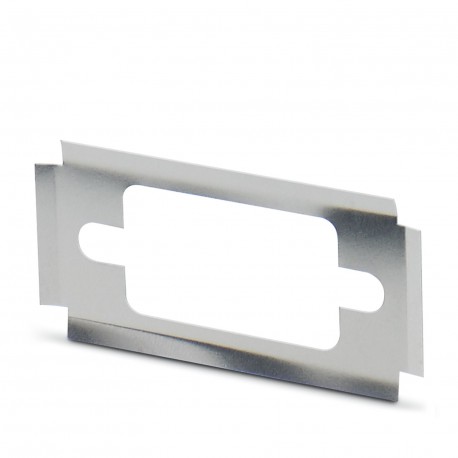

VS-09-A-EMV-S 1688463 PHOENIX CONTACT D-SUB EMC shroud
VS-09-A-EMV-S
1688463
PHOENIX CONTACT
5 Pcs.
D-SUB EMC shroud
CEM D-SUB screen plate, for VS-09 recessed frame-..., wrap size 1, shielded
D-SUB EMC shroud, for panel mounting frame VS-09-..., shell size 1, shielded
Connectors > Accessories/spare parts for industrial connectors
Field Device Connectors (FDC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Product properties
| Product type | Shroud |
| Application | Shroud |
| Type | 09 |
| Data management status | |
| Article revision | 01 |
| Insulation characteristics | |
| Degree of pollution | 2 |
Dimensions
| Width | 35.9 mm |
| Height | 17.5 mm |
Material specifications
| Color | Bare metallic |
| Material | Metal |
| Housing material | Nickel silver |
Mechanical properties
| Mechanical data | |
| Insertion/withdrawal cycles | ≥ 1000 |
Environmental and real-life conditions
| Ambient conditions | |
| Ambient temperature (operation) | -40 °C ... 80 °C |
| Feature Name | Feature Value |
|---|---|
| Connection type primary side (EF000315) | Other |
| Connection type secondary side (EF000316) | Other |
| Overcurrent protection (EF000312) | No |
