View larger
Images are for illustrative purposes only. Please refer to data sheet for details

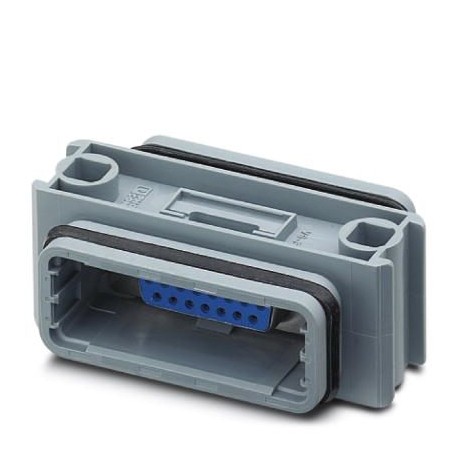

VS-15-KU-BU/BU 1689653 PHOENIX CONTACT D-SUB coupling
VS-15-KU-BU/BU
1689653
PHOENIX CONTACT
5 Pcs.
D-SUB coupling
D-SUB coupling, sheath size 2, female, Gender Changer, shielded, straight connection direction, IP67 degree of protection
Connectors > D-Sub connector
Field Device Connectors (FDC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1689653 |
|---|---|
| Packing unit | 5 pc |
| Minimum order quantity | 5 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 221 (C-2-2013) |
| GTIN | 4017918920371 |
| Weight per Piece (excluding packing) | 26.310 g |
| Custom tariff number | 85366990 |
| Country of origin | DE (Germany) |
Mechanical characteristics
| Number of positions | 15 |
|---|---|
| Insertion/withdrawal cycles | ≥ 200 |
| Cable outlet | straight |
| Color | gray |
| Degree of protection | IP67 |
| Type | D-SUB 15 |
Material data
| Flammability rating according to UL 94 | V0 |
|---|---|
| Housing material | PA |
| Contact carrier material | Polyester GF |
| Contact material | Copper alloy |
| Contact surface material | Hard gold-plated over nickel |
| Sealing material | EPDM |
| Seal material | EPDM |
| Height | 25 mm |
Electrical characteristics
| Number of positions | 15 |
|---|---|
| Rated current | 5 A |
| Overvoltage category | III |
| Degree of pollution | 2 |
| Rated voltage (III/3) | 125 V |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
