View larger
Images are for illustrative purposes only. Please refer to data sheet for details

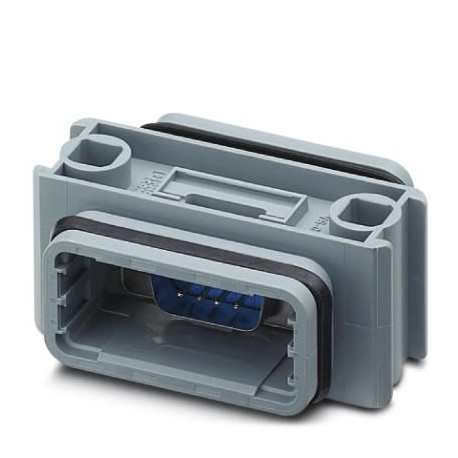

VS-09-KU-ST/ST 1689640 PHOENIX CONTACT D-SUB coupling
VS-09-KU-ST/ST
1689640
PHOENIX CONTACT
5 Pcs.
D-SUB coupling
D-SUB coupling, wrap size 1, male, Gender Changer, shielded, straight connection direction, IP67 degree of protection
Connectors > Accessories/spare parts for industrial connectors
Field Device Connectors (FDC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1689640 |
|---|---|
| Packing unit | 5 pc |
| Minimum order quantity | 5 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 445 (C-2-2017) |
| GTIN | 4017918910075 |
| Weight per Piece (excluding packing) | 21.810 g |
| Custom tariff number | 85366990 |
| Country of origin | DE (Germany) |
Mechanical characteristics
| Number of positions | 9 |
|---|---|
| Insertion/withdrawal cycles | ≥ 200 |
| Cable outlet | straight |
| Color | gray |
| Degree of protection | IP67 |
| Type | D-SUB 9 |
Material data
| Flammability rating according to UL 94 | V0 |
|---|---|
| Housing material | PA |
| Contact carrier material | Polyester GF |
| Contact material | Copper alloy |
| Contact surface material | Hard gold-plated over nickel |
| Sealing material | EPDM |
| Seal material | EPDM |
| Height | 25 mm |
Electrical characteristics
| Number of positions | 9 |
|---|---|
| Rated current | 5 A |
| Overvoltage category | III |
| Degree of pollution | 2 |
| Rated voltage (III/3) | 125 V |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
