View larger
Images are for illustrative purposes only. Please refer to data sheet for details

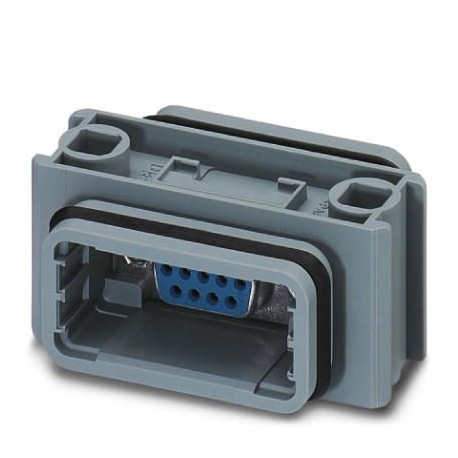

VS-09-KU-BU/BU 1689637 PHOENIX CONTACT D-SUB coupling
VS-09-KU-BU/BU
1689637
PHOENIX CONTACT
5 Pcs.
D-SUB coupling
D-SUB coupling, sheath size 1, female, Gender Changer, shielded, straight connection direction, IP67 protection degree
Connectors > Accessories/spare parts for industrial connectors
Field Device Connectors (FDC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1689637 |
|---|---|
| Packing unit | 5 pc |
| Minimum order quantity | 5 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 445 (C-2-2017) |
| GTIN | 4017918910068 |
| Weight per Piece (excluding packing) | 23.290 g |
| Custom tariff number | 85366990 |
| Country of origin | DE (Germany) |
Mechanical characteristics
| Number of positions | 9 |
|---|---|
| Insertion/withdrawal cycles | ≥ 200 |
| Cable outlet | straight |
| Color | gray |
| Degree of protection | IP67 |
| Type | D-SUB 9 |
Material data
| Flammability rating according to UL 94 | V0 |
|---|---|
| Housing material | PA |
| Contact carrier material | Polyester GF |
| Contact material | Copper alloy |
| Contact surface material | Hard gold-plated over nickel |
| Sealing material | EPDM |
| Seal material | EPDM |
| Height | 25 mm |
Electrical characteristics
| Number of positions | 9 |
|---|---|
| Rated current | 5 A |
| Overvoltage category | III |
| Degree of pollution | 2 |
| Rated voltage (III/3) | 125 V |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 4.027140816eCl@ss 4.127260701eCl@ss 5.027260701eCl@ss 5.127261200eCl@ss 6.027261200eCl@ss 7.027440302eCl@ss 8.027440302eCl@ss 9.027440302
| Feature Name | Feature Value |
|---|---|
| Number of poles (EF001391) | 9 |
