View larger
Images are for illustrative purposes only. Please refer to data sheet for details

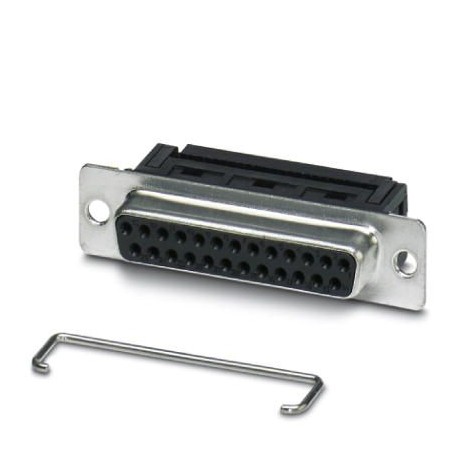

VS-25-BU-DSUB-FK 1689925 PHOENIX CONTACT D-SUB contact insert
VS-25-BU-DSUB-FK
1689925
PHOENIX CONTACT
10 Pcs.
D-SUB contact insert
D-SUB contact insert, wrap size 3, with 25 signal contacts, female contact type, connection for flat cable, angled, fixing by drill 3 mm, for VS-25 recessed frame-...
Connectors > D-Sub connector
Field Device Connectors (FDC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1689925 |
|---|---|
| Packing unit | 10 pc |
| Minimum order quantity | 10 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 213 (C-2-2013) |
| GTIN | 4017918914325 |
| Weight per Piece (excluding packing) | 18.200 g |
| Custom tariff number | 85366990 |
| Country of origin | DE (Germany) |
Mechanical characteristics
| Number of positions | 25 |
|---|---|
| Connection profile | 25-pos. D-SUB |
| Insertion/withdrawal cycles | ≥ 50 |
| Connection method | Flat-ribbon cable connection |
| Mounting type | Hole |
| Type | 25 |
| Size of housing | 3 |
Material data
| Flammability rating according to UL 94 | V0 |
|---|---|
| Housing material | Steel, tin-plated |
| Contact carrier material | Polyester GF |
| Contact material | Copper alloy |
| Contact surface material | Hard gold-plated over nickel |
Electrical characteristics
| Number of positions | 25 |
|---|---|
| Rated current | 1.5 A (at 20 °C) |
| Overvoltage category | III |
| Degree of pollution | 2 |
| Rated voltage (III/3) | 125 V |
| Test voltage | 1000 V |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.027140816eCl@ss 4.127260701eCl@ss 5.027260701eCl@ss 5.127261200eCl@ss 6.027261200eCl@ss 7.027440302eCl@ss 8.027440302eCl@ss 9.027440205
| Feature Name | Feature Value |
|---|---|
| Number of poles (EF001391) | 25 |
