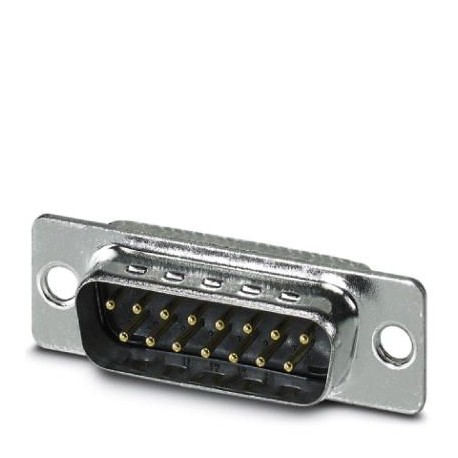

VS-15-ST-DSUB-EG 1688874 PHOENIX CONTACT Contact insert
VS-15-ST-DSUB-EG
1688874
PHOENIX CONTACT
100 Pcs.
Contact insert
D-SUB contact insert, wrap size 2, with 15 signal contacts, male contact type, with welding cup, straight, 3 mm hole fixing, for recessed frame and VS-15 overhead housing-...
Connectors > D-Sub connector
Field Device Connectors (FDC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1688874 |
|---|---|
| Packing unit | 10 pc |
| Minimum order quantity | 10 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 210 (C-2-2013) |
| GTIN | 4017918823023 |
| Weight per Piece (excluding packing) | 7.430 g |
| Custom tariff number | 85366990 |
| Country of origin | DE (Germany) |
Mechanical characteristics
| Number of positions | 15 |
|---|---|
| Connection profile | D-SUB 15 |
| Insertion/withdrawal cycles | ≥ 50 |
| Connection method | Solder cup |
| Conductor cross section | 0.5 mm² |
| Connection cross section AWG | 20 |
| Insertion force per signal contact | ≤ 3.40 N |
| Mounting type | Hole |
| Type | 15 |
| Size of housing | 2 |
Material data
| Flammability rating according to UL 94 | V0 |
|---|---|
| Housing material | Steel, tin-plated |
| Contact carrier material | PBT-GF |
| Contact material | Copper alloy |
| Contact surface material | Hard gold-plated over nickel |
Electrical characteristics
| Number of positions | 15 |
|---|---|
| Rated current | 5 A (at 20 °C) |
| Overvoltage category | III |
| Degree of pollution | 2 |
| Rated voltage (III/3) | 125 V |
| Test voltage | 1200 V |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 4.027140816eCl@ss 4.127260701eCl@ss 5.027260701eCl@ss 5.127261200eCl@ss 6.027261200eCl@ss 7.027440205eCl@ss 8.027440205eCl@ss 9.027440205
| Feature Name | Feature Value |
|---|---|
| Number of poles (EF001391) | 15 |
