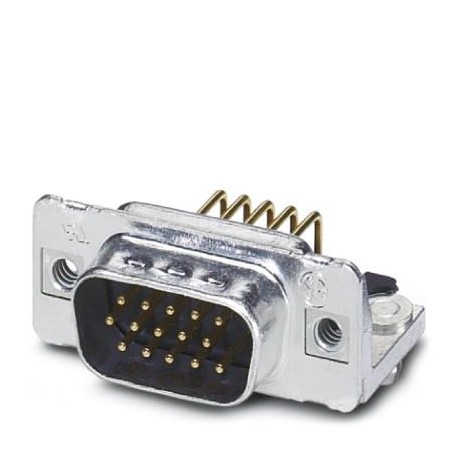

VS-09-ST-DSUB-HD-ER 1655098 PHOENIX CONTACT D-SUB contact insert
VS-09-ST-DSUB-HD-ER
1655098
PHOENIX CONTACT
10 Pcs.
D-SUB contact insert
D-SUB Contact Insert, Wrap Size 1, with 15 Signal Contacts, Male Contact Type, for Printed Circuit Board Mounting, Elbowing, 4-40 UNC Thread Fastening and Solder Pins, for VS-09 Recessed Frame-...
Connectors > D-Sub connector
Field Device Connectors (FDC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1655098 |
|---|---|
| Packing unit | 10 pc |
| Minimum order quantity | 10 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 211 (C-2-2013) |
| GTIN | 4046356029032 |
| Weight per Piece (excluding packing) | 11.100 g |
| Custom tariff number | 85366990 |
| Country of origin | DE (Germany) |
Mechanical characteristics
| Number of positions | 15 |
|---|---|
| Connection profile | D-SUB 9 |
| Insertion/withdrawal cycles | ≥ 50 |
| Connection method | Solder connection |
| Insertion force per signal contact | ≤ 3.40 N |
| Mounting type | Threads and solder pins |
| Type | 09 |
| Size of housing | 1 |
Material data
| Flammability rating according to UL 94 | V0 |
|---|---|
| Contact carrier material | Glass-fiber reinforced thermoplastics, UL 94 V0 |
| Contact material | Copper alloy |
| Contact surface material | Au/Sn |
Electrical characteristics
| Number of positions | 15 |
|---|---|
| Rated current | 3 A (at 20 °C) |
| Overvoltage category | III |
| Degree of pollution | 2 |
| Rated voltage (III/3) | 60 V |
| Test voltage | 1000 V |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 4.027140816eCl@ss 4.127260701eCl@ss 5.027260701eCl@ss 5.127260700eCl@ss 6.027260700eCl@ss 7.027440302eCl@ss 8.027440302eCl@ss 9.027440205
| Feature Name | Feature Value |
|---|---|
| Number of poles (EF001391) | 15 |
