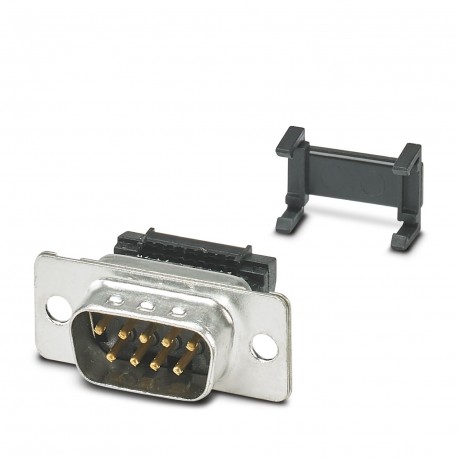

VS-09-ST-DSUB-FK 1688816 PHOENIX CONTACT D-SUB contact insert
VS-09-ST-DSUB-FK
1688816
PHOENIX CONTACT
10 Pcs.
D-SUB contact insert
D-SUB contact insert, wrap size 1, with 9 signal contacts, male contact type, connection for flat cable, angled, fixing by drill 3 mm, for VS-09 recessed frame-...
D-SUB contact insert, shell size 1, with nine signal contacts, type of contact pin, flat-ribbon cable connection, angled, fixing with a 3 mm hole, for panel mounting frame VS-09-...
Connectors > D-Sub connector
Field Device Connectors (FDC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Product properties
| Product type | Male insert |
| Type | D-SUB |
| Number of positions | 9 |
| Connection profile | D-SUB 9 |
| Type | Male |
| Shielded | no |
| Data management status | |
| Article revision | 03 |
| Insulation characteristics | |
| Overvoltage category | III |
| Degree of pollution | 2 |
Electrical properties
| Rated voltage (III/3) | 125 V |
| Rated surge voltage | 1 kV |
| Rated current | 1.5 A (at 20 °C) |
| Test voltage | 1000 V |
| Transmission medium | Copper |
Connection data
| Connection method | Flat-ribbon cable connection |
Dimensions
| Width | 18.5 mm |
| Height | 31.19 mm |
| Length | 12.93 mm |
Material specifications
| Flammability rating according to UL 94 | V0 |
| Housing material | Steel, tin-plated |
| Contact material | Copper alloy |
| Contact surface material | Hard gold-plated over nickel |
| Contact carrier material | Polyester GF |
Mechanical properties
| Mechanical data | |
| Insertion/withdrawal cycles | ≥ 50 |
Environmental and real-life conditions
| Ambient conditions | |
| Ambient temperature (operation) | -55 °C ... 125 °C |
Mounting
| Mounting type | Hole |
| Feature Name | Feature Value |
|---|---|
| Number of poles (EF001391) | 9 |
