View larger
Images are for illustrative purposes only. Please refer to data sheet for details

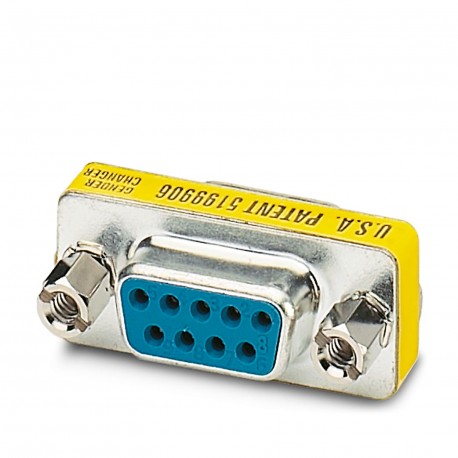

VS-09-GC-BU/BU 1688722 PHOENIX CONTACT D-SUB gender changer
VS-09-GC-BU/BU
1688722
PHOENIX CONTACT
10 Pcs.
D-SUB gender changer
D-SUB contact insert, wrap size 1, with 9 signal contacts, female contact type, Gender-Changer, 4-40 UNC thread attachment
D-SUB gender changer, degree of protection: IP20, number of positions: 9, material: Metal, connection method: Coupling, cable outlet: angled, housing size: 1, Universal
Connectors > D-Sub connector
Field Device Connectors (FDC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Product properties
| Product type | Data connector (cable side) |
| Type | D-SUB |
| Sensor type | Universal |
| Number of positions | 9 |
| Type | Female/Female |
| Shielded | no |
| Cable outlet | angled |
| Data management status | |
| Article revision | 02 |
| Insulation characteristics | |
| Overvoltage category | III |
| Degree of pollution | 2 |
Electrical properties
| Rated voltage (III/3) | 125 V |
| Rated surge voltage | 1 kV |
| Rated current | 5 A |
| Transmission medium | Copper |
Connection data
| Connection technology | |
| Connection method | Coupling |
Dimensions
| Width | 17.6 mm |
| Height | 30.86 mm |
| Length | 12.5 mm |
Material specifications
| Flammability rating according to UL 94 | V0 |
| Housing material | Metal |
| Contact material | Copper alloy |
| Contact surface material | Hard gold-plated over nickel |
| Contact carrier material | Polyester GF |
Mechanical properties
| Mechanical data | |
| Insertion/withdrawal cycles | ≥ 200 |
Environmental and real-life conditions
| Ambient conditions | |
| Degree of protection | IP20 |
| Ambient temperature (operation) | -55 °C ... 125 °C |
Mounting
| Mounting type | Threads |
| Feature Name | Feature Value |
|---|---|
| Number of poles (EF001391) | 9 |
