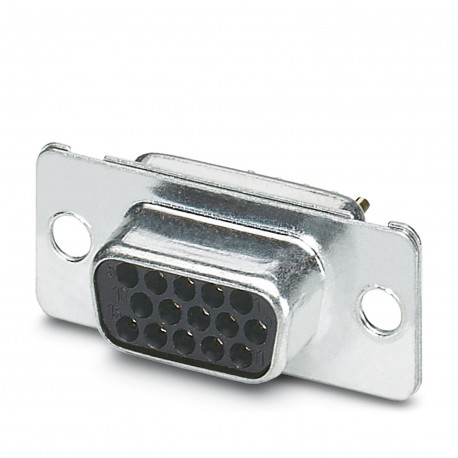

PHOENIX CONTACT VS-09-BU-DSUB-HD-EG VS-09-BU-DSUB-HD-EG 1655108 PHOENIX CONTACT D-SUB contact insert View larger
Images are for illustrative purposes only. Please refer to data sheet for details

VS-09-BU-DSUB-HD-EG 1655108 PHOENIX CONTACT D-SUB contact insert

VS-09-BU-DSUB-HD-EG

1655108

PHOENIX CONTACT

10 Pcs.

D-SUB contact insert D-SUB contact insert, wrap size 1, with 15 signal contacts, female contact type, with solder cup, straight, 3 mm hole fixing, for VS-09 recessed frames-... D-SUB contact insert, tab size 1, with 15 signal contacts, socket type, hand welded, straight, 3 mm hole mounting, for VS-09 flush-mounted frames-...

Connectors > D-Sub connector
Field Device Connectors (FDC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1655108
Packing unit10 pc
Minimum order quantity10 pc
NoteMade to Order (non-returnable)
Catalog pagePage 210 (C-2-2013)
GTIN4046356029049
Weight per Piece (excluding packing)6.600 g
Custom tariff number85366990
Country of originDE (Germany)

Mechanical characteristics

Number of positions15
Connection profileD-SUB 9
Insertion/withdrawal cycles≥ 50
Connection methodSolder cup
Conductor cross section0.34 mm²
Connection cross section AWG22
Insertion force per signal contact≤ 3.40 N
Mounting typeHole
Type09
Size of housing1

Ambient conditions

Ambient temperature (operation)-55 °C ... 105 °C

Material data

Flammability rating according to UL 94V0
Contact carrier materialGlass-fiber reinforced thermoplastics, UL 94 V0
Contact materialCopper alloy
Contact surface materialAu/Sn

Electrical characteristics

Number of positions15
Rated current3 A (at 20 °C)
Overvoltage categoryIII
Degree of pollution2
Rated voltage (III/3)60 V
Test voltage1000 V

Standards and Regulations

Flammability rating according to UL 94V0

Environmental Product Compliance

REACh SVHCLead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 1655108 Connectors (EC003557)
Feature Name Feature Value
Number of poles (EF001391) 15

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
