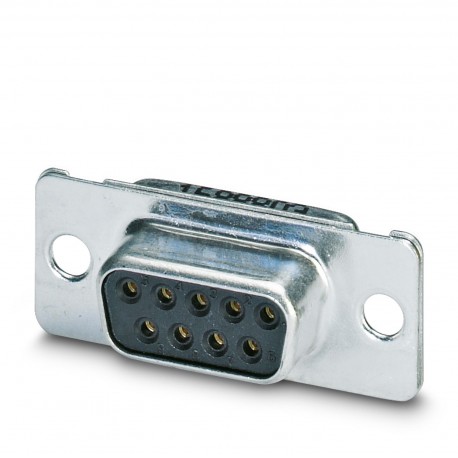

PHOENIX CONTACT VS-09-BU-DSUB-EG VS-09-BU-DSUB-EG 1688803 PHOENIX CONTACT Contact insert View larger
Images are for illustrative purposes only. Please refer to data sheet for details

VS-09-BU-DSUB-EG 1688803 PHOENIX CONTACT Contact insert

VS-09-BU-DSUB-EG

1688803

PHOENIX CONTACT

100 Pcs.

Contact insert D-SUB contact insert, wrapper size 1, with 9 signal contacts, female contact type, with welding cup, straight, 3 mm drill fixing, for recessed frame and VS-09 overhead housing-... D-SUB contact insert, shell size 1, with nine signal contacts, type of contact socket, with solder cup, straight, fixing with a 3 mm hole, for panel mounting frame and sleeve housing VS-09-...

Connectors > D-Sub connector
Field Device Connectors (FDC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Product properties
Product typeFemale insert
TypeD-SUB
Number of positions9
Connection profileD-SUB
Number of slots1
TypeSocket
Shieldedyes
Data management status
Article revision02
Insulation characteristics
Overvoltage categoryIII
Degree of pollution2
Electrical properties
Rated voltage in acc. with IEC 61076-2-101400 V
Rated voltage (III/3)125 V
Rated surge voltage1 kV
Rated current5 A (at 20 °C)
Test voltage1200 V
Transmission mediumCopper
Power transmissionPower
Connection data
Connection technology
Connection methodSolder cup
Dimensions
Width14.5 mm
Height31.19 mm
Length12.93 mm
Material specifications
Flammability rating according to UL 94V0
Housing materialMetal
Housing surface materialmetal-plated
Contact materialCopper alloy
Contact surface materialGold
Contact carrier materialPBT-GF
Mechanical properties
Mechanical data
Insertion/withdrawal cycles≥ 50
Insertion force per signal contact≤ 3.40 N
Environmental and real-life conditions
Ambient conditions
Degree of protectionIP20
Ambient temperature (operation)-55 °C ... 125 °C
Mounting
Mounting typeScrew mounting

ETIM for 1688803 Connectors (EC000438)
Feature Name Feature Value
Number of power contacts (EF012216) 0
Contact insert without contacts (EF007324) Yes
Contact type (EF001587) Bus
Number of poles (EF001391) 9
Rated current In (EF008250) 5 A
Ambient temperature (EF002386) 125 °C
Operating temperature (EF002393) -55 °C
Rated voltage (EF000228) 125 V
Rated surge voltage (EF002993) 1 kV
Over voltage category (EF006785) III
With wire protection (EF000550) No
Connectable conductor cross section fine-strand without cable end sleeve (EF007341) 0.5 mm²
Connectable conductor cross section multi-wired (EF007343) 0.5 mm²
Material of contact surface (EF004020) Other
Material of contact insert (EF008521) Other
Material contact (EF007544) Copper
Inflammability class of insulation material according to UL94 (EF002521) V0
With protective conductor (EF007468) No
Min. number of insertion cycles (EF012212) 50
Width (EF000008) 14.5 mm
Height (EF000040) 31.19 mm
Depth (EF000049) 12.93 mm
