View larger
Images are for illustrative purposes only. Please refer to data sheet for details

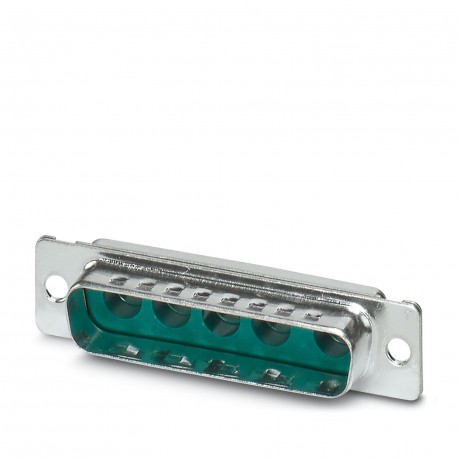

VS-25-ST-DSUB-5P 1689970 PHOENIX CONTACT D-SUB contact support
VS-25-ST-DSUB-5P
1689970
PHOENIX CONTACT
100 Pcs.
D-SUB contact support
D-SUB contact holder, wrap size 3, housing for 5 combined contacts, male contact type, straight, fixing by drill 3 mm, for recessed frame and VS-25 overhead housing-...
D-SUB contact holder, wrap size 3, housing for 5 combined contacts, contact connection type: male, straight, fixing by 3 mm hole, for recessed frame and VS-25 aerial housing-...
Connectors > D-Sub connector
Field Device Connectors (FDC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1689970 |
|---|---|
| Packing unit | 10 pc |
| Minimum order quantity | 10 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 214 (C-2-2013) |
| GTIN | 4017918914370 |
| Weight per Piece (excluding packing) | 7.590 g |
| Custom tariff number | 85366990 |
| Country of origin | DE (Germany) |
Mechanical characteristics
| Number of positions | 5 |
|---|---|
| Insertion/withdrawal cycles | ≥ 500 |
| Connection method | Fitting to accept combined contact |
| Mounting type | Hole |
| Type | D-SUB 25 |
| Size of housing | 3 |
| Type of note | Order information: |
| Note | The contacts must be ordered separately since they are not included in the scope of supply of the contact carriers. |
Material data
| Flammability rating according to UL 94 | V0 |
|---|---|
| Housing material | Steel, yellow chromated |
| Contact carrier material | PBTP |
| Contact surface material | Gold over nickel |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.027140816eCl@ss 4.127260701eCl@ss 5.027260701eCl@ss 5.127261200eCl@ss 6.027261200eCl@ss 7.027440302eCl@ss 8.027440302eCl@ss 9.027440205
| Feature Name | Feature Value |
|---|---|
| Number of poles (EF001391) | 5 |
