View larger
Images are for illustrative purposes only. Please refer to data sheet for details

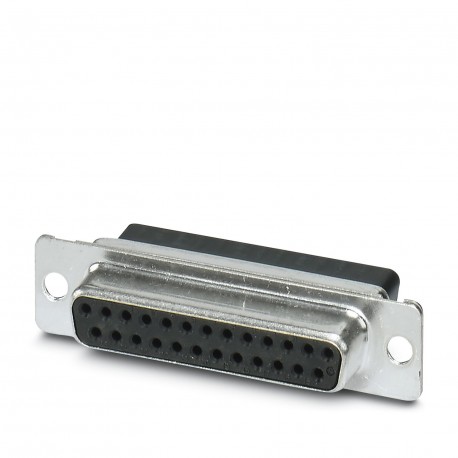

VS-25-BU-DSUB-CD-B 1689967 PHOENIX CONTACT D-SUB contact support
VS-25-BU-DSUB-CD-B
1689967
PHOENIX CONTACT
100 Pcs.
D-SUB contact support
D-SUB contact holder, wrap size 3, for 25 signal contacts, female contact type, for crimped contacts, straight, 3 mm hole fixing, for recessed frame and VS-25 overhead housing-...
D-SUB contact carrier, shell size 3, for 25 signal contacts, type of contact socket, for crimp contacts, straight, fixing with a 3 mm hole, for panel mounting frame and sleeve housing VS-25-...
Connectors > D-Sub connector
Field Device Connectors (FDC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Product properties
| Product type | Female insert |
| Type | D-SUB |
| Number of positions | 25 |
| Connection profile | D-SUB |
| Number of slots | 1 |
| Type | Socket |
| Shielded | yes |
| Data management status | |
| Article revision | 02 |
| Insulation characteristics | |
| Overvoltage category | III |
| Degree of pollution | 2 |
Electrical properties
| Rated voltage in acc. with IEC 61076-2-101 | 400 V |
| Rated voltage (III/3) | 125 V |
| Rated surge voltage | 1 kV |
| Rated current | 5 A (at 20 °C) |
| Test voltage | 1200 V |
| Transmission medium | Copper |
Connection data
| Connection technology | |
| Connection method | Crimp connection |
Dimensions
| Width | 18.1 mm |
| Height | 12.93 mm |
| Length | 53.42 mm |
Material specifications
| Flammability rating according to UL 94 | V0 |
| Housing material | Metal |
| Housing surface material | metal-plated |
| Contact surface material | Gold |
| Contact carrier material | Glass-fiber reinforced thermoplastics, UL 94 V0 |
Mechanical properties
| Mechanical data | |
| Insertion/withdrawal cycles | ≥ 500 |
| Insertion force per signal contact | ≤ 3.40 N |
Environmental and real-life conditions
| Ambient conditions | |
| Degree of protection | IP20 |
| Ambient temperature (operation) | -55 °C ... 130 °C |
Mounting
| Mounting type | Screw mounting |
| Feature Name | Feature Value |
|---|---|
| Number of poles (EF001391) | 25 |
