View larger
Images are for illustrative purposes only. Please refer to data sheet for details

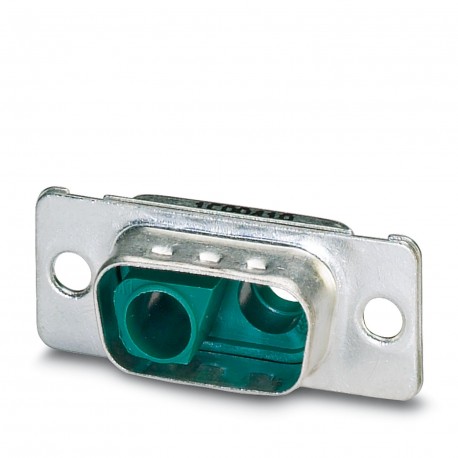

VS-09-ST-DSUB-2P 1688418 PHOENIX CONTACT D-SUB contact support
VS-09-ST-DSUB-2P
1688418
PHOENIX CONTACT
100 Pcs.
D-SUB contact support
D-SUB contact holder, wrap size 1, housing for 2 combined contacts, male contact type, straight, fixing by drill 3 mm, for recessed frame and VS-09 overhead housing-...
D-SUB contact holder, Shell size 1, can accommodate 2 combined contacts, male contact type, straight, fixing by means of a 3 mm hole, for mounting frame and cover VS-09-...
Connectors > D-Sub connector
Field Device Connectors (FDC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1688418 |
|---|---|
| Packing unit | 10 pc |
| Minimum order quantity | 10 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 214 (C-2-2013) |
| GTIN | 4017918818340 |
| Weight per Piece (excluding packing) | 4.470 g |
| Custom tariff number | 85366990 |
| Country of origin | DE (Germany) |
Mechanical characteristics
| Number of positions | 2 |
|---|---|
| Insertion/withdrawal cycles | ≥ 500 |
| Connection method | Fitting to accept combined contact |
| Mounting type | Hole |
| Type | 09 |
| Size of housing | 1 |
| Type of note | Order information: |
| Note | The contacts must be ordered separately since they are not included in the scope of supply of the contact carriers. Both one male and one female contact must be mounted in the contact carrier. |
Material data
| Flammability rating according to UL 94 | V0 |
|---|---|
| Housing material | Steel, yellow chromated |
| Contact carrier material | PBTP |
| Contact surface material | Gold over nickel |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.027140816eCl@ss 4.127260701eCl@ss 5.027260701eCl@ss 5.127261200eCl@ss 6.027261200eCl@ss 7.027440302eCl@ss 8.027440302eCl@ss 9.027440205
| Feature Name | Feature Value |
|---|---|
| Number of poles (EF001391) | 2 |
