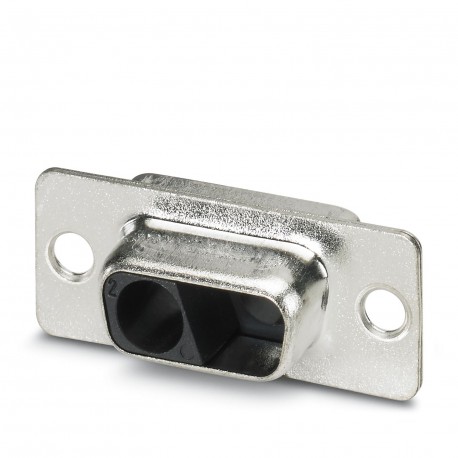

VS-09-BU-DSUB-2P 1688421 PHOENIX CONTACT D-SUB contact support
VS-09-BU-DSUB-2P
1688421
PHOENIX CONTACT
100 Pcs.
D-SUB contact support
D-SUB contact holder, wrap size 1, housing for 2 combined contacts, female contact type, straight, fixing by drilling 3 mm, for recessed frame and VS-09 overhead housing-...
D-SUB contact carrier, shell size 1, accommodation for two combined contacts, type of contact socket, straight, fixing with a 3 mm hole, for panel mounting frame and sleeve housing VS-09-...
Connectors > D-Sub connector
Field Device Connectors (FDC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Notes
| Order information: | The contacts must be ordered separately since they are not included in the scope of supply of the contact carriers. Both one male and one female contact must be mounted in the contact carrier. |
Product properties
| Product type | Female insert |
| Type | D-SUB |
| Number of positions | 2 |
| Connection profile | D-SUB |
| Number of slots | 1 |
| Type | Socket |
| Shielded | yes |
| Data management status | |
| Article revision | 02 |
Electrical properties
| Transmission medium | Copper |
Connection data
| Connection technology | |
| Connection method | Wave soldering contacts |
Dimensions
| Width | 12.6 mm |
| Height | 12.93 mm |
| Length | 31.19 mm |
Material specifications
| Flammability rating according to UL 94 | V0 |
| Housing material | Metal |
| Housing surface material | metal-plated |
| Contact surface material | Gold |
| Contact carrier material | PBTP |
Mechanical properties
| Mechanical data | |
| Insertion/withdrawal cycles | ≥ 500 |
Environmental and real-life conditions
| Ambient conditions | |
| Degree of protection | IP20 |
| Ambient temperature (operation) | -55 °C ... 125 °C |
Mounting
| Mounting type | Screw mounting |
| Feature Name | Feature Value |
|---|---|
| Number of poles (EF001391) | 2 |
