View larger
Images are for illustrative purposes only. Please refer to data sheet for details

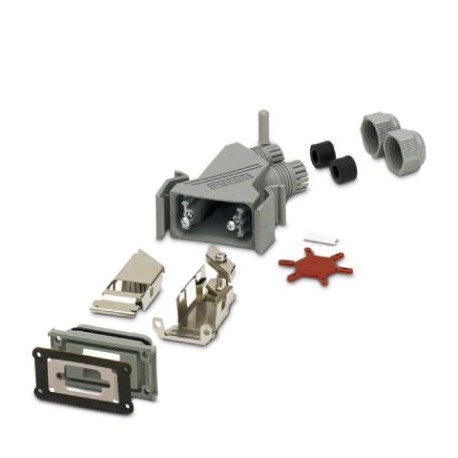

VS-15-SET-EMV 1689132 PHOENIX CONTACT D-SUB connector set
VS-15-SET-EMV
1689132
PHOENIX CONTACT
1 Pcs.
D-SUB connector set
D-SUB connector set, wrap size 2, IP67 degree of protection, with screen plates
Connectors > Accessories/spare parts for industrial connectors
Field Device Connectors (FDC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1689132 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 221 (C-2-2013) |
| GTIN | 4017918877996 |
| Weight per Piece (excluding packing) | 79.400 g |
| Custom tariff number | 85366990 |
| Country of origin | DE (Germany) |
Mechanical characteristics
| Number of positions | 15 |
|---|---|
| Shielded | yes |
| Insertion/withdrawal cycles | ≥ 1000 |
| External cable diameter | 3 mm ... 9 mm |
| Cable outlet | Angled |
| Color | gray |
| Degree of protection | IP67 |
| Type | D-SUB 15 |
| Size of housing | 2 |
| No. of cable outlets | 2 |
Material data
| Flammability rating according to UL 94 | V0 |
|---|---|
| Housing material | PA |
| Sealing material | Flat gasket: NBR; profile gasket: EPDM |
| Seal material | Flat gasket: NBR; profile gasket: EPDM |
| Cable seal material | CR/NBR |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
