SUBCON-PLUS-PROFIB/AX/SC 2744380 PHOENIX CONTACT D-SUB bus connector

SUBCON-PLUS-PROFIB/AX/SC

2744380

PHOENIX CONTACT

1 Pcs.

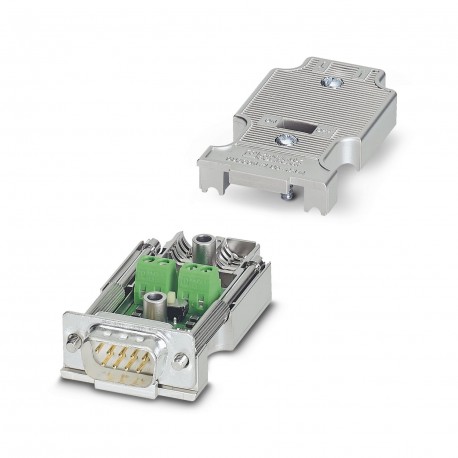

D-SUB bus connector D-SUB connector, 9 poles, male, axial design with two cable entries, bus system: PROFIBUS DP up to 12 Mbits/s, terminal resistor connectable via sliding switch, pin occupancy: 3, 5, 6, 8; screw connection terminals

Connectors > D-Sub connector
Safety

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2744380
Packing unit1 pc
Catalog pagePage 375 (C-6-2017)
GTIN4017918818142
Weight per Piece (excluding packing)51.160 g
Custom tariff number85366990
Country of originDE (Germany)

Dimensions

Max. cable diameter8.4 mm
Min. cable diameter7.6 mm
Width17 mm
Height31.5 mm
Length58.2 mm

Ambient conditions

Ambient temperature (operation)-20 °C ... 75 °C
Ambient temperature (storage/transport)-25 °C ... 80 °C
Altitude5000 m (For restrictions see manufacturer's declaration)
Degree of protectionIP30

General

Nominal voltage UN5 V
Nominal current IN100 mA
Bus systemPROFIBUS DP
SignalPROFIBUS
Insertion/withdrawal cycles> 200
SUBCON fixing screws4-40 UNC
Tightening torque0.4 Nm
Housing materialABS, metal-plated
Pin assignment3, 5, 6, 8
MTTF6706 Years (SN 29500 standard, temperature 25 °C, operating cycle 21 % (5 days a week, 8 hours a day))
1817 Years (SN 29500 standard, temperature 40 °C, operating cycle 34.25 % (5 days a week, 12 hours a day))
155 Years (SN 29500 standard, temperature 40 °C, operating cycle 100 % (7 days a week, 24 hours a day))

Connection data

ConnectionD-SUB connection
Number of positions9
Connection methodD-SUB connector
Termination resistor390 Ω
220 Ω
390 Ω (Can be connected externally)
Torque0.4 Nm
ConnectionPCB connection
Connection methodScrew connection
Conductor cross section flexible min.0.14 mm²
Conductor cross section flexible max.1 mm²
Conductor cross section solid min.0.14 mm²
Conductor cross section solid max.1.5 mm²
Min. AWG conductor cross section, flexible26
Max. AWG conductor cross section, flexible18
Conductor cross section AWG min.26
Conductor cross section AWG max.16
Stripping length5 mm
Torque0.4 Nm

Standards and Regulations

Free from substances that could impair the application of coatingaccording to P-VW 3.10.7 57 65 0 VW-AUDI-Seat central standard
Connection in acc. with standardCUL
ATEX II 3 G Ex nA IIC T4 Gc X
Noxious gas testISA-S71.04-1985 G3 Harsh Group A

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 2744380 Data networking products (EC001132)
Feature Name Feature Value
Number of poles (EF001391) 9
Contact type (EF001587) Male

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
