View larger
Images are for illustrative purposes only. Please refer to data sheet for details

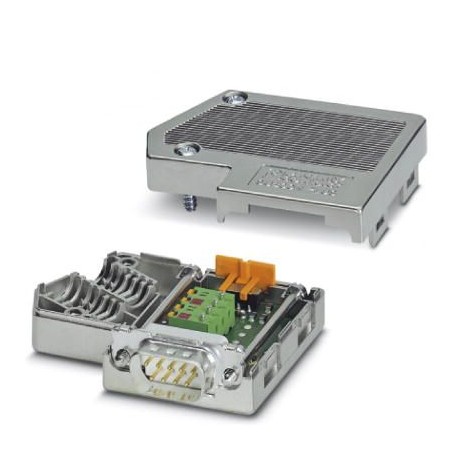

SUBCON-PLUS-PROFIB 2744348 PHOENIX CONTACT D-SUB bus connector
SUBCON-PLUS-PROFIB
2744348
PHOENIX CONTACT
1 Pcs.
D-SUB bus connector
D-SUB connector, 9 poles, male, two cable entries less than 35°, bus system: PROFIBUS DP up to 12 MBit/s, closing resistor via sliding switch, pole diagram: 3, 5, 6, 8; Spring-loaded terminal blocks
Connectors > D-Sub connector
Safety
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 2744348 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 133 (C-6-2017) |
| GTIN | 4017918172947 |
| Weight per Piece (excluding packing) | 39.700 g |
| Custom tariff number | 85366990 |
| Country of origin | DE (Germany) |
Ambient conditions
| Ambient temperature (operation) | -20 °C ... 75 °C |
|---|---|
| Ambient temperature (storage/transport) | -25 °C ... 80 °C |
| Altitude | 5000 m (For restrictions see manufacturer's declaration) |
| Degree of protection | IP40 |
General
| Nominal voltage UN | 5 V |
|---|---|
| Nominal current IN | 100 mA |
| Bus system | PROFIBUS DP |
| Signal | PROFIBUS |
| Insertion/withdrawal cycles | > 200 |
| SUBCON fixing screws | 4-40 UNC |
| Tightening torque | 0.4 Nm |
| Housing material | ABS, metal-plated |
| Pin assignment | 3, 5, 6, 8 |
| MTTF | 6706 Years (SN 29500 standard, temperature 25 °C, operating cycle 21 % (5 days a week, 8 hours a day)) |
| 1817 Years (SN 29500 standard, temperature 40 °C, operating cycle 34.25 % (5 days a week, 12 hours a day)) | |
| 155 Years (SN 29500 standard, temperature 40 °C, operating cycle 100 % (7 days a week, 24 hours a day)) |
Connection data
| Connection | D-SUB connection |
|---|---|
| Number of positions | 9 |
| Connection method | D-SUB connector |
| Termination resistor | 390 Ω |
| 220 Ω | |
| 390 Ω (Can be connected externally) | |
| Connection | PCB connection |
| Connection method | Spring-cage connection |
| Conductor cross section solid min. | 0.12 mm² |
| Conductor cross section solid max. | 0.5 mm² |
| Conductor cross section AWG min. | 26 |
| Conductor cross section AWG max. | 20 |
| Stripping length | 5 mm |
| Tightening torque | 0.4 Nm |
Standards and Regulations
| Free from substances that could impair the application of coating | according to P-VW 3.10.7 57 65 0 VW-AUDI-Seat central standard |
|---|---|
| Connection in acc. with standard | CUL |
| ATEX | II 3 G Ex nA IIC T4 Gc X |
| Noxious gas test | ISA-S71.04-1985 G3 Harsh Group A |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.027140816eCl@ss 4.127140816eCl@ss 5.027143424eCl@ss 5.127143400eCl@ss 6.027143400eCl@ss 7.027440302eCl@ss 8.027440302eCl@ss 9.027440302
| Feature Name | Feature Value |
|---|---|
| Number of poles (EF001391) | 9 |
| Contact type (EF001587) | Male |
