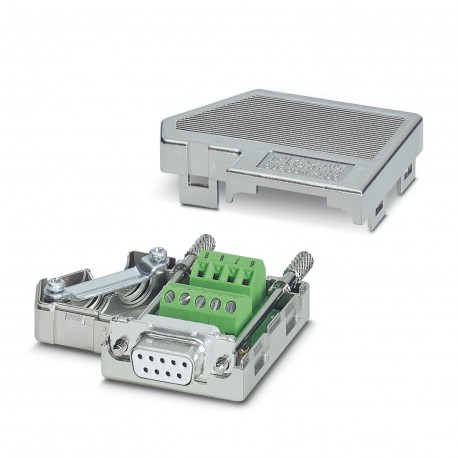

PHOENIX CONTACT SUBCON-PLUS 9/F SUBCON-PLUS 9/F 2744241 PHOENIX CONTACT D-SUB bus connector View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SUBCON-PLUS 9/F 2744241 PHOENIX CONTACT D-SUB bus connector

SUBCON-PLUS 9/F

2744241

PHOENIX CONTACT

1 Pcs.

D-SUB bus connector D-SUB connector, 9-pole female connector, two cable entries under 35°, universal model for all systems, pin occupancy: 1, 2, 3, 4, 5, 6, 7, 8, 9 on a screw connection terminal D-SUB connector, 9-pos. female connector, two 35° cable entries, universal type for all systems, pin assignment: 1, 2, 3, 4, 5, 6, 7, 8, 9 to one screw connection terminal block

Connectors > D-Sub connector
Safety

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Notes
Utilization restriction
CCCex noteUse in potentially explosive areas is not permitted in China.
Product properties
Product typeData plug
MTTF6706 Years (SN 29500 standard, temperature 25°C, operating cycle 21%)
1817 Years (SN 29500 standard, temperature 40°C, operating cycle 34.25%)
155 Years (SN 29500 standard, temperature 40°C, operating cycle 100%)
Pin assignmentAll connections are 1:1 on the screw terminal block
Data management status
Article revision09
Electrical properties
Nominal voltage UN50 V DC
Nominal current IN100 mA
Transmission mediumCopper
Connection data
D-SUB connection
Connection methodD-SUB socket
PCB connection
Connection methodScrew connection
Stripping length5 mm
Conductor cross section, rigid min.0.14 mm²
Conductor cross section, rigid max.1.5 mm²
Conductor cross section flexible min.0.14 mm²
Conductor cross section flexible max.1 mm²
Single-wire/terminal point, rigid AWG min.26
Single-wire/terminal point, rigid AWG max.16
Min. AWG conductor cross section, flexible26
Max. AWG conductor cross section, flexible18
Interfaces
Bus systemUniversal type for all systems
SignalRS-485
RS-232
RS-422
Dimensions
Dimensional drawingngqlepdpip.jpg
Width16 mm
Height44 mm
Length60 mm
Material specifications
Material (Housing)ABS (metal-plated)
Cable/line
External cable diameter6 mm ... 10 mm (Incoming bus line)
Mechanical properties
Mechanical data
Insertion/withdrawal cycles> 200
Environmental and real-life conditions
Ambient conditions
Degree of protectionIP20
Ambient temperature (operation)-20 °C ... 75 °C
Ambient temperature (storage/transport)-25 °C ... 80 °C
Altitude≤ 5000 m (For restrictions, see the manufacturer's declaration for altitude operation)
Permissible humidity (operation)10 % ... 95 % (non-condensing)
Permissible humidity (storage/transport)5 % ... 95 % (non-condensing)
Approvals
ATEX
Identification II 3 G Ex ec IIC T4 Gc
CertificatePxCIF15ATEX2744241X
NotePlease follow the special installation instructions in the documentation!
Corrosive gas test
IdentificationISA-S71.04-1985 G3 Harsh Group A
Standards and regulations
Free from substances that could impair the application of coatingVDMA 24364:2018-05

ETIM for 2744241 Data networking products (EC001132)
Feature Name Feature Value
Number of poles (EF001391) 9
Contact type (EF001587) Female
