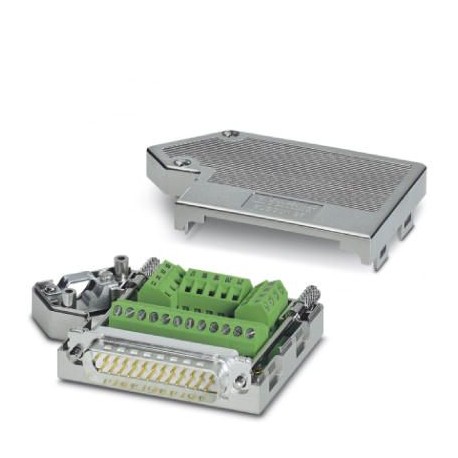

PHOENIX CONTACT SUBCON 25/M-SH SUBCON 25/M-SH 2761622 PHOENIX CONTACT D-SUB bus connector View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SUBCON 25/M-SH 2761622 PHOENIX CONTACT D-SUB bus connector

SUBCON 25/M-SH

2761622

PHOENIX CONTACT

1 Pcs.

D-SUB bus connector D-SUB connector, 25 poles, male, cable entry under 35º, universal model for all systems, pin occupancy: 1,2,3,...,24,25 in screw connection terminals

Connectors > D-Sub connector
Safety

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2761622
Packing unit1 pc
Catalog pagePage 379 (C-6-2017)
GTIN4017918107994
Weight per Piece (excluding packing)84.440 g
Custom tariff number85366990
Country of originDE (Germany)

Dimensions

Max. cable diameter10 mm
Min. cable diameter4 mm
Width16 mm
Height55 mm
Length79 mm

Ambient conditions

Ambient temperature (operation)-20 °C ... 75 °C
Ambient temperature (storage/transport)-25 °C ... 80 °C
Altitude5000 m (For restrictions see manufacturer's declaration)
Degree of protectionIP20
IP20

General

Nominal voltage UN50 V
Nominal current IN100 mA
SignalModbus
RS-232
RS-422
RS-485
Insertion/withdrawal cycles> 200
SUBCON fixing screws4-40 UNC
Tightening torque0.4 Nm
Housing materialABS, metal-plated
Pin assignmentAll connections are 1:1 on the screw terminal block
MTTF6706 Years (SN 29500 standard, temperature 25 °C, operating cycle 21 % (5 days a week, 8 hours a day))
1817 Years (SN 29500 standard, temperature 40 °C, operating cycle 34.25 % (5 days a week, 12 hours a day))
155 Years (SN 29500 standard, temperature 40 °C, operating cycle 100 % (7 days a week, 24 hours a day))

Connection data

ConnectionD-SUB connection
Number of positions25
Connection methodD-SUB connector
ConnectionPCB connection
Connection methodScrew connection
Conductor cross section flexible min.0.14 mm²
Conductor cross section flexible max.1 mm²
Conductor cross section solid min.0.14 mm²
Conductor cross section solid max.1.5 mm²
Min. AWG conductor cross section, flexible26
Max. AWG conductor cross section, flexible18
Conductor cross section AWG min.26
Conductor cross section AWG max.16
Stripping length5 mm
Tightening torque0.4 Nm

Standards and Regulations

Free from substances that could impair the application of coatingaccording to P-VW 3.10.7 57 65 0 VW-AUDI-Seat central standard
Connection in acc. with standardCUL
ATEX II 3 G Ex nA IIC T4 Gc X
Noxious gas testISA-S71.04-1985 G3 Harsh Group A

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 2761622 Data networking products (EC001132)
Feature Name Feature Value
Number of poles (EF001391) 25
Contact type (EF001587) Male
