View larger
Images are for illustrative purposes only. Please refer to data sheet for details

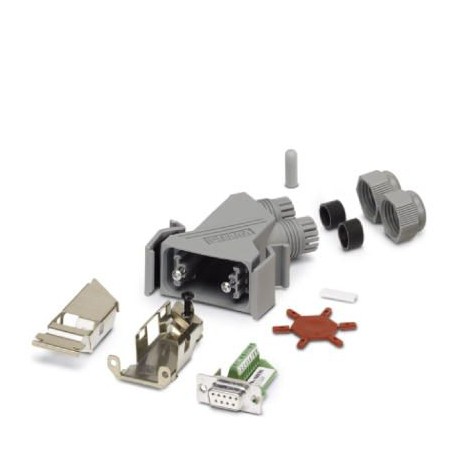

VS-09-IBS-BU 1689284 PHOENIX CONTACT D-SUB connector
VS-09-IBS-BU
1689284
PHOENIX CONTACT
1 Pcs.
D-SUB connector
D-SUB complete plug-in connector, for INTERBUS, wrap size 1, female, screw connection, shielded, straight connection direction, IP67 protection degree
Connectors > Accessories/spare parts for industrial connectors
Field Device Connectors (FDC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1689284 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 444 (C-2-2017) |
| GTIN | 4017918892753 |
| Weight per Piece (excluding packing) | 90.600 g |
| Custom tariff number | 85369010 |
| Country of origin | DE (Germany) |
Mechanical characteristics
| Number of positions | 9 |
|---|---|
| Shielded | yes |
| Insertion/withdrawal cycles | ≥ 200 |
| Connection method | Screw connection |
| Conductor cross section | 0.14 mm² ... 0.5 mm² |
| Connection cross section AWG | 26 ... 20 |
| External cable diameter | 5 mm ... 9 mm |
| Cable outlet | Angled |
| Color | blue |
| Degree of protection | IP67 |
| Type | D-SUB 9 |
| Size of housing | 1 |
| No. of cable outlets | 2 |
Material data
| Flammability rating according to UL 94 | V0 |
|---|---|
| Housing material | PA |
| Contact carrier material | PBTP |
| Contact material | Copper alloy |
| Contact surface material | Gold over nickel |
| Cable seal material | CR/NBR |
Electrical characteristics
| Number of positions | 9 |
|---|---|
| Rated current | 1 A |
| Overvoltage category | II |
| Degree of pollution | 2 |
| Rated voltage (III/3) | 63 V |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
