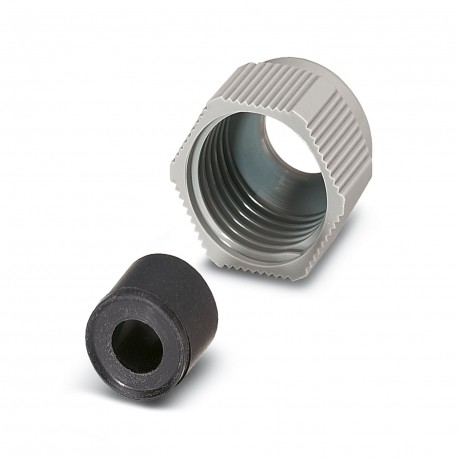

VS-M16 (5-9) 1688447 PHOENIX CONTACT D-SUB pressure nut
VS-M16 (5-9)
1688447
PHOENIX CONTACT
5 Pcs.
D-SUB pressure nut
D-SUB cap nut with cable gasket, for VS-09 bobbin housing-..., cable diameters of 5 mm... 9 mm
D-SUB cap nut with line seal, for sleeve housing VS-09-..., conductor diameter of 5 mm ... 9 mm
Cables > Cable gland
Field Device Connectors (FDC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Product properties
| Product type | Pressure nut |
| Application | Pressure nut |
| Type of the screw connection | M16 |
| Data management status | |
| Article revision | 01 |
Material specifications
| Color | gray |
| Flammability rating according to UL 94 | V0 |
| Seal material | Neoprene |
| Housing material | PA |
Cable/line
| External cable diameter | 5 mm ... 9 mm |
Mechanical properties
| Mechanical data | |
| Type of the screw connection | M16 |
Environmental and real-life conditions
| Ambient conditions | |
| Degree of protection | IP67 |
| Ambient temperature (operation) | -40 °C ... 80 °C |
| Ambient temperature (assembly) | -20 °C ... 80 °C |
| Feature Name | Feature Value |
|---|---|
| Suitable for cable diameter (EF005466) | 5 mm |
| Material (EF002169) | Other |
| Material quality (EF001257) | Other |
| Surface protection (EF000139) | Other |
| Halogen free (EF000025) | No |
| Degree of protection (IP) (EF005474) | Other |
| Model (EF000010) | Straight |
| Separable screw gland (EF005337) | No |
| Operating temperature (EF001742) | -40 °C |
| Explosion-tested version (EF004191) | No |
| For Ex-zone gas (EF005728) | None |
| For Ex-zone dust (EF008404) | None |
| For armoured cable (EF012184) | No |
| EMC-version (EF001062) | No |
| Screened (EF000881) | No |
| Pressure-compensating (EF024919) | No |
