View larger
Images are for illustrative purposes only. Please refer to data sheet for details

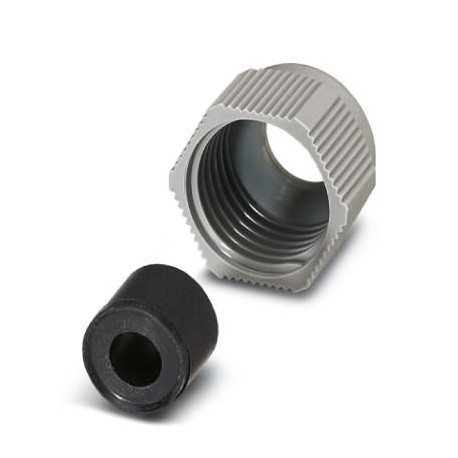

VS-PG11 (5-10) 1688104 PHOENIX CONTACT D-SUB pressure nut
VS-PG11 (5-10)
1688104
PHOENIX CONTACT
5 Pcs.
D-SUB pressure nut
D-SUB cap nut with cable joint, for cable diameters of 5 mm ... 10 mm, for VS-15 bobbin housing-...
Cables > Cable gland
Field Device Connectors (FDC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1688104 |
|---|---|
| Packing unit | 5 pc |
| Minimum order quantity | 5 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 219 (C-2-2013) |
| GTIN | 4017918182281 |
| Weight per Piece (excluding packing) | 3.970 g |
| Custom tariff number | 39269097 |
| Country of origin | DE (Germany) |
Mechanical characteristics
| External cable diameter | 5 mm ... 10 mm |
|---|---|
| Type of cable | Round cable |
| Color | gray |
| Degree of protection | IP67 |
| Type of the screw connection | Pg11 |
Ambient conditions
| Ambient temperature (operation) | -40 °C ... 80 °C |
|---|---|
| Ambient temperature (assembly) | -20 °C ... 80 °C |
Material data
| Flammability rating according to UL 94 | V0 |
|---|---|
| Housing material | PA |
| Sealing material | Neoprene |
| Seal material | Neoprene |
Classifications
eCl@ss 4.027140816eCl@ss 4.127260701eCl@ss 5.027260701eCl@ss 5.127261200eCl@ss 6.027261200eCl@ss 7.027069215eCl@ss 8.027069215eCl@ss 9.027144420
| Feature Name | Feature Value |
|---|---|
| Suitable for cable diameter (EF005466) | 5 mm |
| Material (EF002169) | Other |
| Material quality (EF001257) | Other |
| Surface protection (EF000139) | Other |
| Halogen free (EF000025) | No |
| Degree of protection (IP) (EF005474) | Other |
| Model (EF000010) | Straight |
| Separable screw gland (EF005337) | No |
| Operating temperature (EF001742) | -40 °C |
| Explosion-tested version (EF004191) | No |
| For Ex-zone gas (EF005728) | None |
| For Ex-zone dust (EF008404) | None |
| For armoured cable (EF012184) | No |
| EMC-version (EF001062) | No |
| Screened (EF000881) | No |
| Pressure-compensating (EF024919) | No |
