View larger
Images are for illustrative purposes only. Please refer to data sheet for details

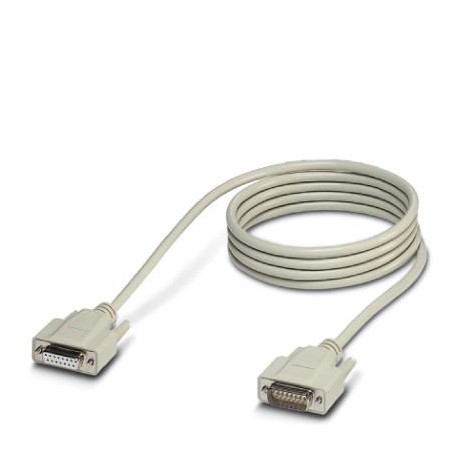

VS-15-DSUB-20-LI-2,0 1656275 PHOENIX CONTACT D-SUB cable
VS-15-DSUB-20-LI-2,0
1656275
PHOENIX CONTACT
1 Pcs.
D-SUB cable
Ready-made D-SUB cable, shielded, 15 poles, flexible (7 wires), cable colour RAL 7000 (grey), degree of protection IP20, header 1 with female sheath 2 and straight cable outlet, header 2 with male sheath 2 and straight cable outlet, length: 2 m
Automation > Sensor-actuator patch cord
Field Device Connectors (FDC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1656275 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 218 (C-2-2013) |
| GTIN | 4046356029759 |
| Weight per Piece (excluding packing) | 184.700 g |
| Custom tariff number | 85444290 |
| Country of origin | CN (China) |
Mechanical characteristics
| Number of positions | 15 |
|---|---|
| Insertion/withdrawal cycles | ≥ 50 |
| Cable outlet | straight |
| Degree of protection | IP20 |
Material data
| Housing material | PVC |
|---|---|
| Contact material | Copper alloy |
| Contact surface material | gold-plated |
| Outer sheath, material | PVC |
Electrical characteristics
| Number of positions | 15 |
|---|---|
| Rated current | 1 A |
| Overvoltage category | III |
| Degree of pollution | 2 |
| Rated voltage (III/3) | 125 V |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 10.0.127060390eCl@ss 4.027060306eCl@ss 4.127060306eCl@ss 5.027061801eCl@ss 5.119030300eCl@ss 6.027060300eCl@ss 7.027060390eCl@ss 8.027060390eCl@ss 9.027060390
| Feature Name | Feature Value |
|---|---|
| Number of poles (EF001391) | 15 |
| Type of electrical connection, field-sided (EF005525) | Other |
| Type of plug-in contact, field sided (EF006269) | Male (plug) |
| Positioning cable feed, field-sided (EF005928) | Straight |
| Type of electrical connection, box-sided (EF005524) | Other |
| Type of plug-in contact, box-sided (EF008386) | Female (bus) |
| Positioning cable feed, box-sided (EF005927) | Straight |
| Cable length (EF000536) | 2 m |
| Material of cable sheath (EF004136) | Polyvinyl chloride (PVC) |
| Halogen free (EF000025) | No |
| Colour cable sheath (EF008249) | Other |
| With LED indication (EF005950) | No |
| Screened (EF000881) | No |
| Vulcanize (EF004115) | No |
| Material contact body (EF008248) | Other |
| Material of contact surface (EF004020) | Other |
| Degree of protection (IP) (EF005474) | Other |
