View larger
Images are for illustrative purposes only. Please refer to data sheet for details

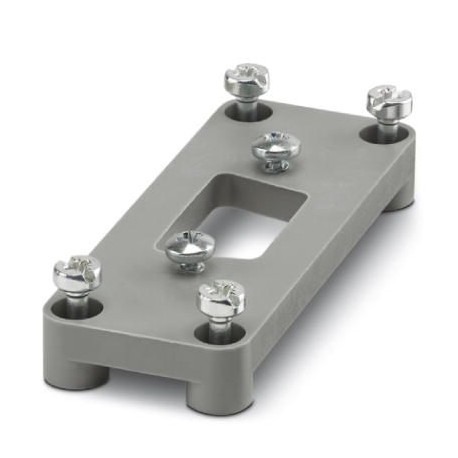

HC-D 15-ADP/1 DSUB 9 1661312 PHOENIX CONTACT Adapter plate
HC-D 15-ADP/1 DSUB 9
1661312
PHOENIX CONTACT
2 Pcs.
Adapter plate
D-SUB adapter plate, for equipping with a D-SUB connector, number of poles 9, HC-D housing series 15...
Connectors > Adapter plate industrial connectors
Industrial plug-in connectors/interfaces
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1661312 |
|---|---|
| Packing unit | 2 pc |
| Minimum order quantity | 2 pc |
| Catalog page | Page 667 (C-2-2017) |
| GTIN | 4017918022570 |
| Weight per Piece (excluding packing) | 8.090 g |
| Custom tariff number | 85389099 |
| Country of origin | DE (Germany) |
General
| Material | PA |
|---|---|
| Flammability rating according to UL 94 | HB |
| Color | gray |
| Number of positions | 9 |
| Type | D15 |
| Assembly instructions | With mounting screws: 1) Phillips self-tapping screw 2.9 x 6.2/2) M3 x 10 DIN 84 |
| Connection | Mounting position of the adapter plate in the sleeve housing: T is visible after mounting in the housing. Mounting position of the adapter plate in the panel mounting base/socket housing/coupling housing: A is visible after mounting in the housing. Mounting position of the D-SUB (after mounting in the housing): in front of the mounting plate (front mounting) |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.027140816eCl@ss 4.127140816eCl@ss 5.027143424eCl@ss 5.127143400eCl@ss 6.027261200eCl@ss 7.027440201eCl@ss 8.027440201eCl@ss 9.027440201
| Feature Name | Feature Value |
|---|---|
| Width (EF000008) | 23 mm |
| Height (EF000040) | 7 mm |
| Shape of opening (EF006256) | D-Sub |
| Number of openings (EF005591) | 1 |
| Material adapter plate (EF007539) | Plastic |
| With sealing (EF005610) | Yes |
| Degree of protection (IP), mounted (EF007466) | IP54 |
| Inflammability class of insulation material according to UL94 (EF002521) | HB |
